Filter TypeConstant Q - 3% center accuracy
Frequency Bands31, 1/3 octave, ISO spacing
Frequency Response20Hz to 20kHz, +0.5dB
High Pass Filter10Hz to 250Hz, 12dB/oct
Input Impedance20k ohms (bal), 15k ohms (unbal)

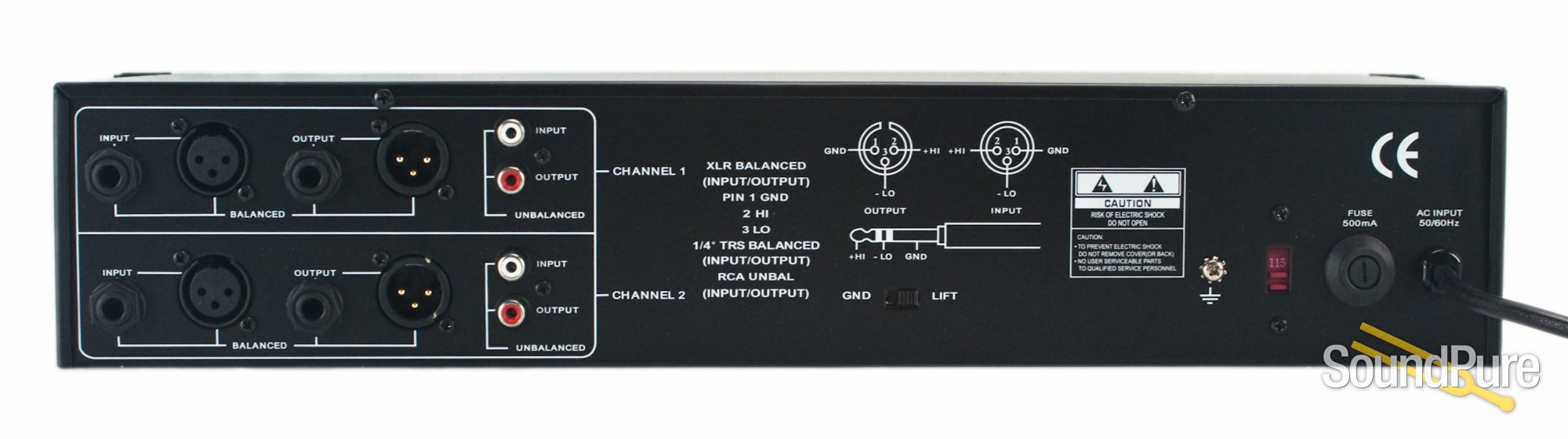

Input/Output ConnectionsActive balanced XLR and 1/4" TRS {XLR pin 2, 1/4" tip = Hot (+)} Unbalanced RCA
Low Pass Filter3kHz to 40kHz, 12dB/oct
Maximum Input Level+22dBm
Maximum Output Level+18dBm (bal), +22dBm (unbal)
Power(Switchable) 95-130VAC, 50/60Hz, 22 watts (USA)
Range+/-6dB or +/-12dB selectable
Signal to Noise Ratio-94dB
Slider Travel20mm w/ positive center detent
Total Harmonic Distortion0.0001
WarrantyOne Year
Dimensions3.5"H x 19" W x 8.5" D
Weight9.0lbs (4.1kg)
