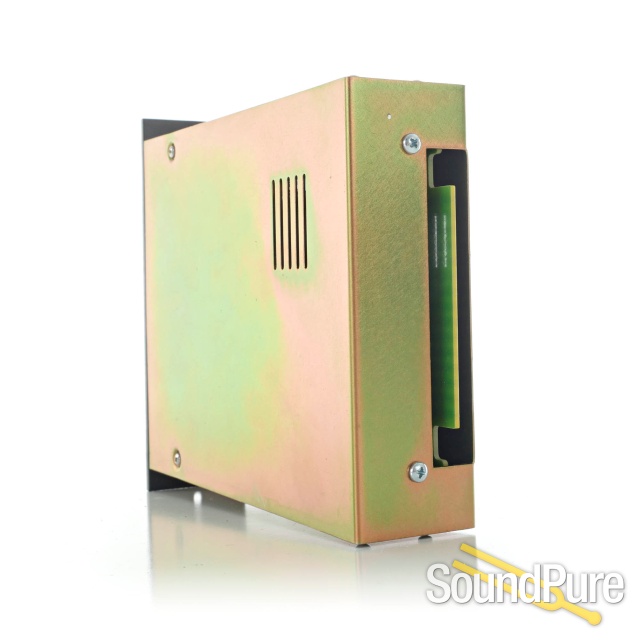

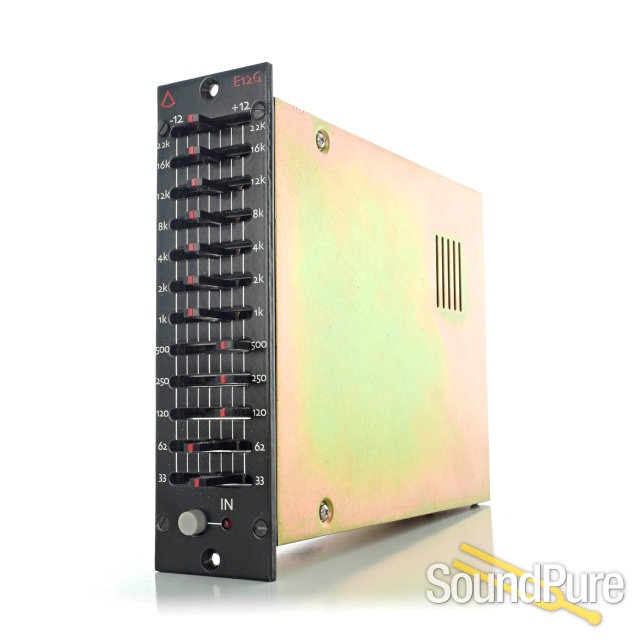

The E12G was designed for the need for a high quality graphic equalizer in a 500 series module format. Its ease of use for sound shaping and frequency correction during tracking makes the E12G an indispensable tool in the studio. There are no IC chips in the frequency bands, as customary of other graphic eq designs. Instead of IC’s, the use of Class A preamps for each band was designed to keep your music from sounding “processed”, and help to bring out every detail of harmonic richness captured by the microphone and a high-end mic preamp. Additional frequencies 12kHz and 22kHz was chosen to fill a void in the high frequencies, not found in other graphic equalizers. The Ingenius® input stage, designed by Bill Whitlock of Jensen Transformers®, provides clarity and performance found in high end input transformers.
Avedis Audio Electronics designs and manufactures professional audio equipment with a specialty in analog circuit design. Our original designs are not a copy, but a progression of advancement in analog design today. We use the best quality components throughout every design to not only sound and perform well, but to be reliable and consistent.
Frequency Response | <10Hz to -3dB at 100kHz |
Input Impedance | 48k ohms balanced |
Output Impedance | <150 ohms |
Common Mode Rejection Ratio | 90dB min @ 60Hz |
Maximum Output Level | +28 dBu @ 100KΩ, +26.5 dBu @ 600Ω |
Power Requirements | ±16 vdc @ 40mA per rail |
Maximum Input Level | +20dBu |
Distortion | 0.012% @ 1kHz @ 0dBu input |
Equivalent Input Noise | −115 dBu; Unweighted 300kHz bandwidth |
Weight | 1.35 lbs / 0.61kg |
