Focusrite RedNet X2P AoIP Interface  From Focusrite

2x2 Analogue I/O With 2x Mic Pres, Headphone And Line Output, PoE Supplied

Focusrite

$1,299.99

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $29/mo.

Manufacturer's Description from Focusrite

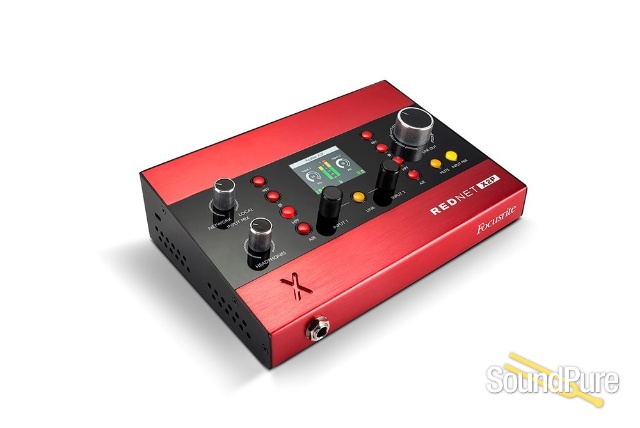

RedNet X2P is a compact, portable and robust 2x2 Dante™ audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortless add a high quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable – simply use a power over Ethernet switch or PoE injector. A local input mixer allows 'more me' monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

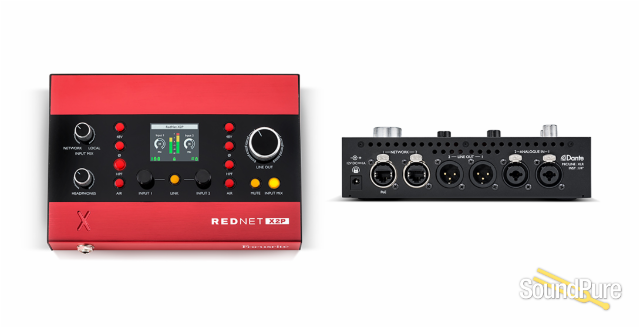

Rear panel XLR outputs offer level-controlled analogue outputs of up to 24dBu, while a front panel 1/4" connector provides a high-powered headphone output capable of driving both high and low impedance headphones. A pair of combination XLR/1/4" inputs allow the connection of mic, line or instrument level signals to the mic pres, which include Focusrite's acclaimed Air mode which emulates the sound of our classic input transformers. The top panel features an array of controls: output level for headphone and line outputs, mic pre controls of gain, high-pass filter, Air, phase invert, phantom power and stereo linking; as well as the crossfader for controlling the balance of mic pre inputs and network receiver channels which to be sent to the headphone or line outputs.



Features:

  • Stereo 2x2 audio interface for Dante Audio-over-IP networks
  • Two Red Evolution mic preamps for mic, line or instrument level inputs
  • Power-over-Ethernet supplied: IEEE 802.3af compliant
  • Up to 24-bit, 96kHz sampling rates
  • Robust steel and aluminium chassis
  • Local input mix to allow ‘more-me’ style monitoring for easy foldback control
  • Powerful headphone output even with high-impedance headphones
  • Local control lockout of mic pre settings, output settings or both
  • Up to 24dBu line output levels
  • Independent level control of headphone and line outputs
  • Mute switch for line output
  • Mic stand mount
  • Kensington security slot
  • Integrated network switch allowing daisy-chaining of network devices
  • Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
  • AES67 compliant
Focusrite

About Manufacturer

The Focusrite brand was established way back in 1985 and the founding principles of the company were to develop products that sounded more musical, in addition to just measuring well - today,we still carry these founding principles forward in our class-leading and award-winning designs. We measure our success by the success of you, our clients, and you will find Focusrite product prominent in professional and project studios throughout the world. Based just outside of London, we work with the best design talent throughout the world to bring you the tools to enhance the way you work. Our product is made with pride and principle in a highly automated ISO 9002 factory with significant level of test by engineers who themselves are musicians and understand the part our product plays in your process. Our commitment: We understand that how your project sounds to you is your most important concern. We are totally dedicated and focused on designing and manufacturing product that will enable you to achieve this goal. Our design goals are that product should be easy to use, logically designed, give class-leading performance and give years of predictable performance. We strive to continuously improve ourselves in these respects - our principal concern is meeting your expectations. Our focus on quality is all consuming - it rules our daily life.

Specifications

MICROPHONE/ LINE INPUTS








Gain Range

0dB to 68dB in 1dB steps





Type

Electronically Balanced, Zin = 6.2kO





Max. Input Level

>+24dBu, min gain





Frequency Response

20Hz - 35kHz ±0.1dB





THD + N

-103dB (0.0007%) @ -1dBFS (@ 24dB Gain)





EIN

<-130dBu 'A'-Weighted (typical)





Signal-To-Noise Ratio

-120dB 'A'-Weighted (typical), min gain





Common-Mode Rejection Ratio

50/60Hz CMRR: -80dB





Phantom Power

+48V, independently switchable per channel.





HPF

High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel





Air Mode

2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO







INSTRUMENT INPUTS








Instrument Inputs Gain Range

0dB to 68dB in 1dB steps





Instrument Inputs Type

Electronically Balanced, Zin = 2MO





Instrument Inputs Max. Input Level

>+15dBu, min gain





Instrument Inputs Frequency Response

20Hz - 35kHz ±0.1dB





Instrument Inputs THD + N

<-100dB (0.001%) @ -1dBFS (@ 16dB Gain)





Instrument Inputs Signal-To-Noise Ratio

-118dB 'A'-Weighted (typical), min gain





Instrument Inputs HPF

High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel







LINE LEVEL OUTPUTS








Line Level Outputs 0 DBFS Reference Levels

+18 or +24dBu (switchable)





Line Level Outputs Frequency Response

20Hz - 35kHz ±0.1dB





Line Level Outputs THD + N

<-104dB (0.0006%) @ -1dBFS





Line Level Outputs Dynamic Range

-120dB 'A'-Weighted (typical), 20Hz - 20kHz







HEADPHONE OUTPUT








Headphone Output 0 DBFS Reference Levels

>+19dBm





Headphone Output Frequency Response

20Hz - 20kHz ±0.2dB





Headphone Output THD + N

<-103dB (0.0007%) @ -1dBFS





Headphone Output Dynamic Range

117dB 'A'-weighted (typical), 20Hz - 20kHz





Headphone Output Impedance

5O





Headphone Impedance

32O - 600O







MICROPHONE/ LINE CROSSTALK








Mic/Line Input To Input

< -72dB; 20Hz - 20kHz (driven channel at -20dBFS)





Mic/Line Input To Output

< -126dB; 20Hz - 20kHz (driven channel at -20dBFS)





Output To Mic/Line Input

< -159dB; 20Hz - 20kHz (driven channel at -20dBFS)







OUTPUT CROSSTALK








Output To Output

< -101dB; 20Hz - 20kHz (driven channel at -20dBFS)







HEADPHONE CROSSTALK








Right To Left

< -85dB; 20Hz - 20kHz (driven channel at -20dBFS)







DIGITAL PERFORMANCE








Supported Sample Rates

44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit





Clock Sources

Internal or from Dante Network Master.







FRONT PANEL CONNECTIVITY








Outputs Headphone Outputs

1 x 1/4" stereo jack







REAR PANEL CONNECTIVITY








Inputs Mic/Line/Inst Inputs

2 x Locking Combi XLR





Outputs Line Outputs

2 x Male XLR







PSU & NETWORK CONNECTIONS








PSU (PoE And DC)

1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.





Network

2 x etherCON connectors, also compatible with standard RJ45 connectors.







TOP PANEL INDICATORS








LCD Screen

1 x Screen (Status & Metering)







DIMENSIONS








Height (Chassis Only)

47.5mm/ 1.87"





Width

140mm/ 5.51"





Depth (Chassis Only)

104mm/ 4.09"







WEIGHT








Weight

1.04kg







POWER








Power Over Ethernet (PoE)

Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)





DC Power Supply

1 x 12V 1.2A DC Power Supply.





Power Consumption

PoE: 11.0W - DC: 13.32W (When using supplied DC PSU)







HEAT PERFORMANCE








Operating Temperature



Operates at up to an ambient temperature of 45 degrees Celcius
