Furman PL-Plus DMC Power Conditioner  From Furman

Rack Mountable Power Conditioner with Volt Meter/Ammeter

Furman Sound

$499.95

Retail:  $579.95

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $43/mo.

Manufacturer's Description from Furman

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge suppressors.

Features

Surge Protection

Furman's exclusive SMP technology provides the highest level of surge & spike protection available.

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

Pull-out Lights

Dual smooth track retractable LED lights illuminate equipment in your rack.

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

Voltmeter / Ammeter

Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination.

Wall Wart Spacing

Three widely spaced outlets accommodate bulky AC power transformers.

15 AMP Rating

15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

Nine Total Outlets

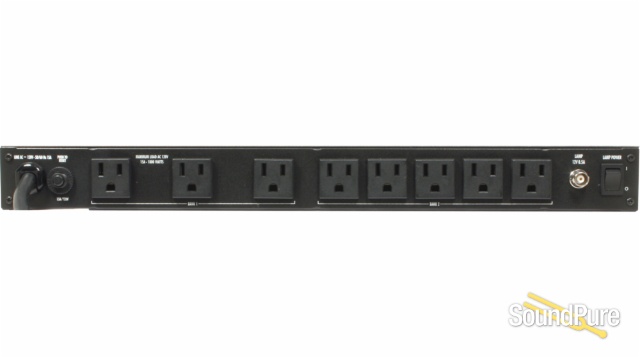

Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Furman Sound

About Manufacturer

Furman Sound has been producing high-quality, professional products since 1974. Our products fall into two broad categories: the audio and video signal processors (on which the company was founded) and the innovative AC power conditioning and distribution products for which we are best known. Applications for these products are no longer limited to music, but also span a wide range of markets. Our highly acclaimed CE line, established in 2001, incorporates a complete line of AC power management products specifically engineered for today's home theater systems. Additional applications for our Professional Audio/Video products include sound reinforcement, home and professional recording, post production, broadcast systems, telecommunications, and data processing. Recently we were proud to introduce the next generation in power conditioning technology: Series II. All Series II units feature our revolutionary Series Multi-Stage Protection Plus (SMP+) circuit. Developed over a period of two years by our highly skilled team of engineers, our new circuit incorporates our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (E.V.S.), making it the most advanced power-conditioning system available. SMP+ can be found in all Series II and Power Factor units. We at Furman are proud of our 34 year history, but are focused on the future and our commitment to stretch the bounds of technology to provide the most advanced power purification solutions for any application.

Specifications

Maximum Output Current: 15 amps

Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug

Pull-out Lights: Two multi-LED, dimmable lamps

BNC Socket w/Switch: Rear rack lamp, 12VAC 500MA maxx (lamp not included)

Operating Voltage: 90 to 139 VAC

Spike Protection Mode: Line to neutral, zero ground leakage

Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 Amps

Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Dimensions: 19” W x 10.5” D x 1.75” H

Weight: 12 lbs.

Power Consumption: 12 watts

Safety Listing: cTUVus

Downloads

Action

Name

Description

Classic Series Data Sheet

PL-Plus DMC Manual
