Designed by David Royer of Royer Labs, the MA-200 is a large diaphragm tube condenser mic with a warm, smooth, 3-dimensional tone. Great on a wide-variety of studio sources but exceptional on vocals!
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?

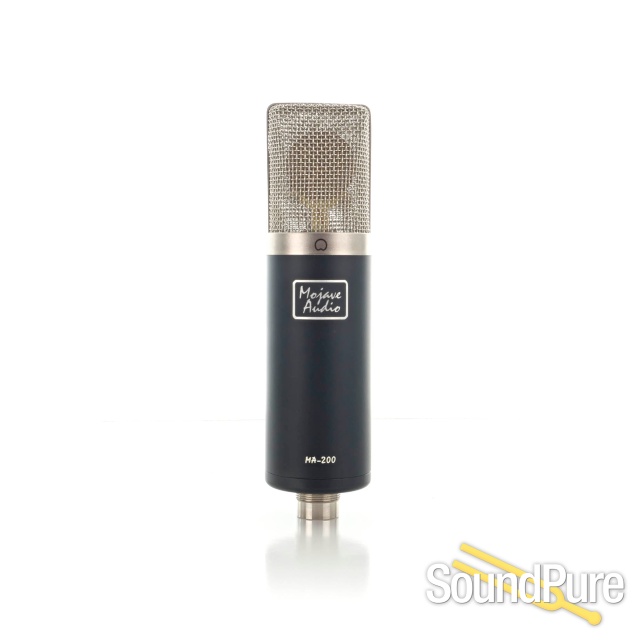

Born to a lineage of fine microphone designs by David Royer, the MA-200 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.
Utilizing hand-selected 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-200 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-200 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-200 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.
Features:
Recommended applications:
Use anywhere you would use an expensive, large diaphragm tube microphone.
David Royer started Mojave Audio in 1985 in the garage of his house. The location was Fullerton, California, and Mojave Audio was a one-man, custom pro audio gear shop. David is best known for his ribbon microphone designs with Royer Labs, but he originally started out designing and building vacuum tube microphones, mic pre's and compressors for engineers in the Los Angeles area. Since the mid 1990's, Davidýs custom Mojave products have been used on a number of well-known recordings and have achieved legendary status among a small circle of high-end engineers. With the launching of Mojave Audio, we are able to bring David's non-ribbon designs to the world.
TRANSDUCER TYPE: Externally excited capacitor type
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS: 3-microns
POLAR RESPONSE: Cardioid
FREQUENCY RESPONSE: 20 Hz - 20 kHz, +/-3dB
SENSITIVITY: -37dB re 1V/pa
MAXIMUM SPL: 120dB
DISTORTION: head amp only, <1% @117dB SPL, <3% @ 125dB SPL
SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)
IMPEDANCE: 200 ohms, balanced using an output transformer
VACUUM TUBE: 5840 - pentode tube wired for triode operation
POWER REQUIREMENTS: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts.
DIMENSIONS AND WEIGHT:

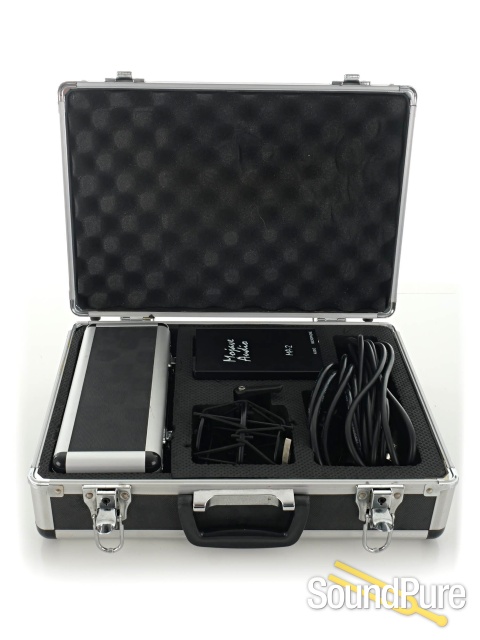

Carrying case with microphone, power supply, shock mount
and cables: 13 lbs.
Microphone: 7 5/8" X 2", 1 lb.
