Mojave Audio MA-201 FET LDC Microphone  From Mojave Mics

  The Solid-State LDC MA-201 FET gives warm, full-bodied reproductions of vocals and instruments.

Mojave Audio

$849.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $74/mo.

Mojave MA201 FET Microphone Demo -- Acoustic Guitar Video

The impressive Mojave MA201 FET records some impressive acoustic guitar. It has a full, rich, and balanced character that shined through on both a clean Millennia mic preamp, as well as a more colored tube preamp from Sebatron. The MA-201 from Mojave Audio doesn't have the harshness associated with many of the large diaphragm mics currently being built, and proves here to provide detail, without that brassy top end, and instead has a full, rich and well-balanced character. Sound Pure carries the full line of Mojave microphones in addition to owning and using them in our own high end professional recording studios, so please don't hesitate to send us any question that you might have about them.

Manufacturer's Description from Mojave Mics

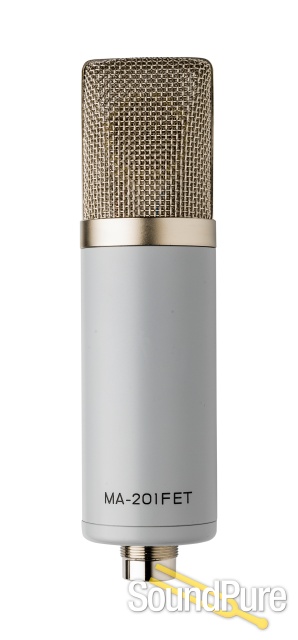

The MA-201fet is a large diaphragm, phantom-powered, solid-state condenser microphone with a fixed cardioid pattern. With its roots in a lineage of microphone designs by David Royer, the MA-201fet gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

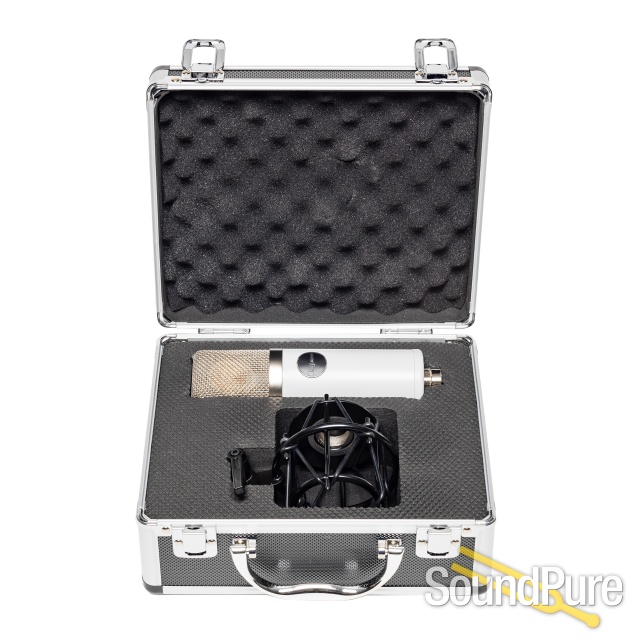

Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-20fet performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-201fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

Features:

  • Hand-selected 3-micron 1" capsule
  • Jensen audio transformer
  • Military-grade FET
  • Custom designed low-noise resistors
  • Ultra clean signal path

Recommended applications:

  • Vocals
  • Voice Over and Broadcast
  • High SPL sources, such as Kick Drums and Bass Guitar Amps
  • Electric Guitar
  • Piano
  • Drum Overheads, Drum Rooms
  • Acoustic Instruments
Mojave Audio

About Manufacturer

David Royer started Mojave Audio in 1985 in the garage of his house. The location was Fullerton, California, and Mojave Audio was a one-man, custom pro audio gear shop. David is best known for his ribbon microphone designs with Royer Labs, but he originally started out designing and building vacuum tube microphones, mic pre's and compressors for engineers in the Los Angeles area. Since the mid 1990's, Davidýs custom Mojave products have been used on a number of well-known recordings and have achieved legendary status among a small circle of high-end engineers. With the launching of Mojave Audio, we are able to bring David's non-ribbon designs to the world.

Specifications

TRANSDUCER TYPE: Externally polarized pressure gradient capacitor

DIAPHRAGM: 1-inch diameter, gold sputtered

DIAPHRAGM THINKNESS: 3-micron

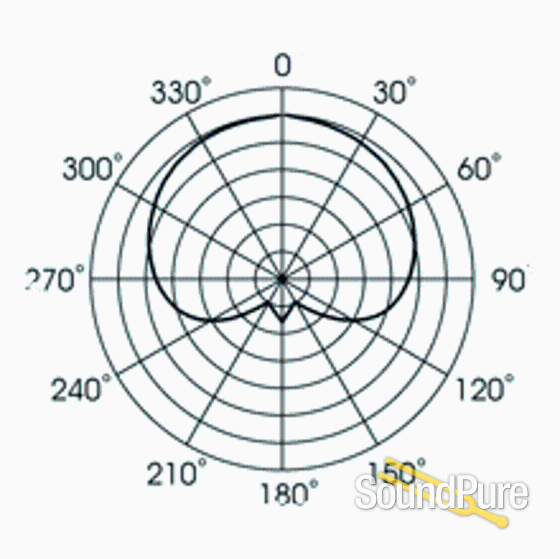

POLAR PATTERN: Cardioid

FREQUENCY RESPONSE: 20 Hz-20kHz, + 3dB

SENSITIVITY: -39 dB re. 1V/pa

MAXIMUM SPL: 125 dB

DISTORTION: <1% @120dB SPL, <3% @134dB SPL

SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)

IMPEDANCE: 550 ohms, transformer balanced (Jensen)

POWERING: 48VDC phantom power; current .68mA.

DIMENSIONS AND WEIGHT:
Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
Microphone: 7 5/8" x 2", 1 lb.
