TELEFUNKEN Elektroakustik M60 FET Cardioid Stereo Set  From TELEFUNKEN

A stereo pair of TELEFUNKEN's first non-tube condenser! The M60 offers an incredibly honest representation of the sound source and impeccable detail, resulting in an unhyped yet musical small diaphragm mic that portrays the instrument exactly how it is.

TELEFUNKEN Elektroakustik

$1,495.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
In Stock!
Ships immediately after order processed!

Want to Save More?
Buy Demo or Used!

This is available, but can sell out at any time:
Payments as low as $34/mo.

XY Miking Technique (Part 1 of 2) - Master Class

Todd walks us through how to properly execute the XY miking technique for an acoustic guitar while Sean demonstrates. None of the audio has gone through post-production. To talk more about how to set up XY mics or the Telefunkens we used call 919.682.5552. Thank you for watching!

  • Signal Chain
    • TELEFUNKEN Elektroakustik M60 FET Cardioid Stereo Set

Manufacturer's Description from TELEFUNKEN

With over a year and half of development and beta testing with top recording engineers, the newly designed M60 FET (Field Effect Transistor) small diaphragm microphone is TELEFUNKEN Elektroakustik's first non-vacuum tube, FET-based solid-state condenser microphone. The M60 FET Series is designed to utilize the same interchangeable TK6x capsules as the TEC Award-winning ELA M 260 small diaphragm tube microphone.

The M60 FET Cardioid Stereo Set comes with two identical M60 FET amplifiers paired with a matched set of TK60 cardioid polar pattern capsules. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

The M60 FET's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of string instruments and percussive sources.

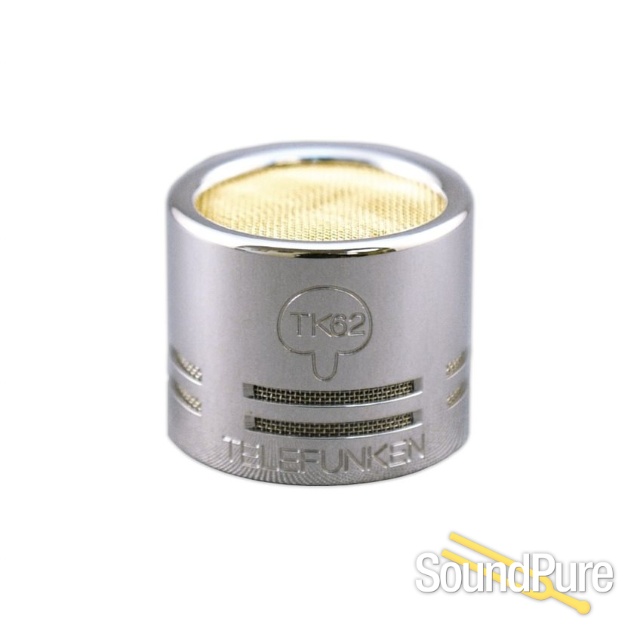

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone's XLR connector shell complements the look with a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated enclosure with a fine gold mesh pattern.

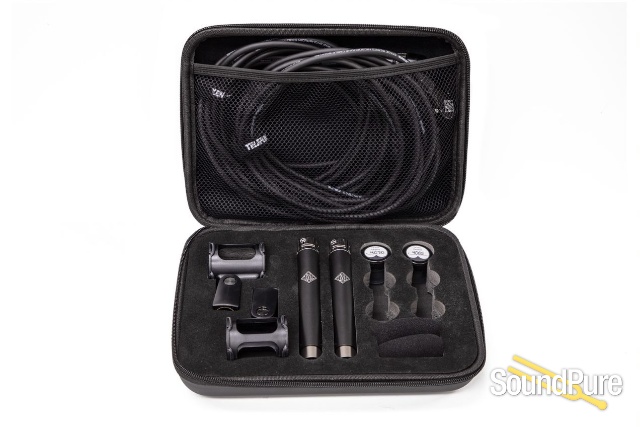

The M60 FET Cardioid STEREO SET ships complete with (2) SGMC-5R 5-meter XLR cables with right angle female connector, (2) M761 elastic shock mounts, and (2) foam windscreens, all packed in a FC62 dual microphone zipper carrying case.
TELEFUNKEN Elektroakustik

About Manufacturer

TELEFUNKEN Elektroakustik of South Windsor, CT has been following the tradition of excellence and innovation set forth by the original TELEFUNKEN GmbH of Germany that began over 100 years ago.

TELEFUNKEN Elektroakustik's origins began in 2000 when owner Toni Fishman acquired the rights to the name and diamond logo for use in North America. The company began with the reverse engineering of a single microphone part: the ELA M 251 polar pattern selector. Mr. Fishman purchased an original Telefunken ELA M 251 for use in his recording studio, but when he received it he discovered that the polar pattern switch was no longer functional. Realizing that this was a common issue with the original units, the idea to recreate it was born.

The switch was reverse engineered and brought into production for other 251 owners with the same issue. With one part down, the goals were set high to successfully reverse engineer the entire microphone exactly as it was originally manufactured. The next two years were spent developing each and every part of the microphone right down to every detail. Numerous original documents and drafts from TELEFUNKEN and AKG were acquired, and coupled with thorough reverse engineering the ELA M 251 was brought back to life with meticulous accuracy.

As TELEFUNKEN moves forward, one foot is rooted in the rich history of the brand, and the other in new microphone innovations. TELEFUNKEN has evolved exponentially from a single pattern switch to one of the industry leaders in top quality microphones.

Specifications

Type: Condenser Pressure Gradient

Capsule: TK60

Frequency Range: 20Hz / 20kHz

Polar Pattern: Cardioid

Sensitivity: 8.6mV/PA +/-1db

THD at 1kHz at 1Pa: <0.10% 1kHZ at 1Pa

Output Impedance: <120 Ohm

Maximum SPL: 130db SPL (1%THD)

Self Noise: <19dB-A

Power Type: Dedicated Power Supply

Size: 5 1/2" (140mm) length x 13/16" (21mm) diameter

Weight: 4.2 oz (119g)

Powering Alternative: Phantom Power

Supply Current: 48 volts

Connected Via: XLR-3

Supplied Accessories: 2x M761 Elastic Mount, 2x SGMC-5R XLR cable

Optional Accessories: FC62 Molded Zipper Case
