Sound Pure's Take
Condition: Used, Excellent
From Acoustic Image Amps

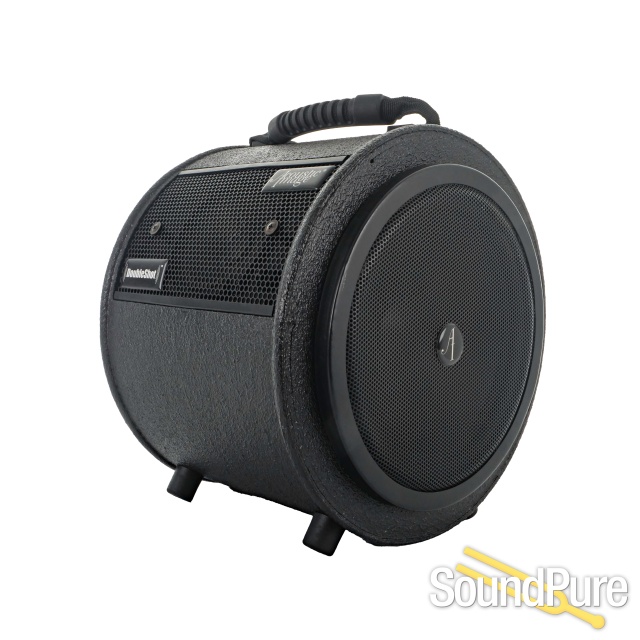

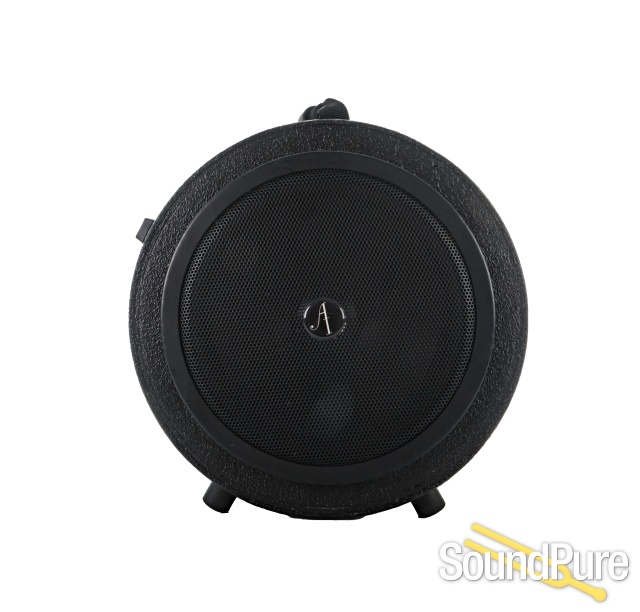

The DoubleShot is a compact (12in D x 11in W), lightweight (15 lbs.) 2x10 plus 1x5 speaker system for acoustic and electric instruments. The system is unique, with the woofers mounted in a side-firing configuration and the midrange firing forward. The result is a highly portable, yet great sounding speaker system.
The DoubleShot is an evolution of our UpShot speaker, with a second 10-inch driver and 5-inch midrange added to the design. It is, by far, the smallest and lightest 2x10 system available. Its small size belies its outstanding full range sound.
The DoubleShot Combo consists of the DoubleShot Speaker and one of our SL-class integrated amplifiers. There are rubber stops on the top of the cabinet that hold the amp head in place. When the amp is placed on top against the stops and the speaker is connected, a unique “combo” is formed.
Technical Specs
Frequency Response: 40 Hz - 16 kHz
Impedance: 4 ohms
Max Continuous Power: 600W
Max SPL: >118 db at 1 m
Drivers: 2x10 inch side-firing custom, 1x5 inch forward-firing custom w/ level switch
Crossover: Two-way second order asymmetric
Enclosure: 12 inches diameter, 11 inches wide
Weight: 15 pounds

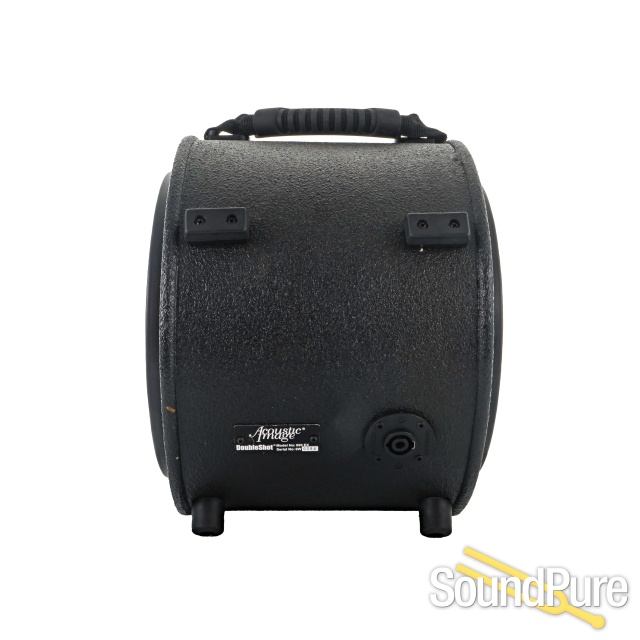

Input: Neutrik Speakon wired to pole 1
Features
Designed for acoustic and electric instruments including bass, guitar and keyboards
Compact, highly portable, cylindrical shape fits in a backpack for transport
12 inches diameter, 11 inches wide, 15 pounds, small enough to fit in airline overhead storage bin or under seat
Two 10-inch broad frequency range custom side-firing drivers
One 5-inch forward firing midrange driver with level switch
Two-way asymmetric crossover
Omnidirectional sound fills the bandstand and venue
Bumpers allow compact amp head to mount on cabinet
Rated at 4 ohms, 600W
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: 48-hour audition. Program details →
