Condition: Used, Excellent

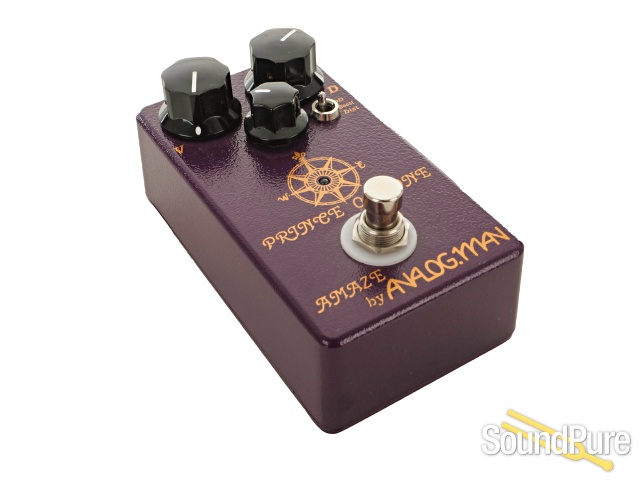

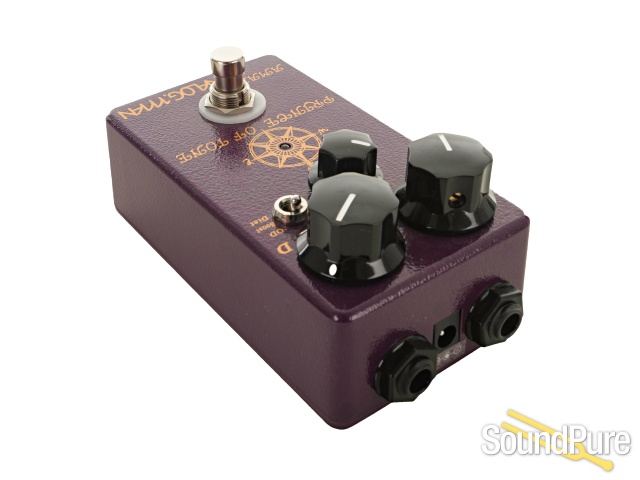

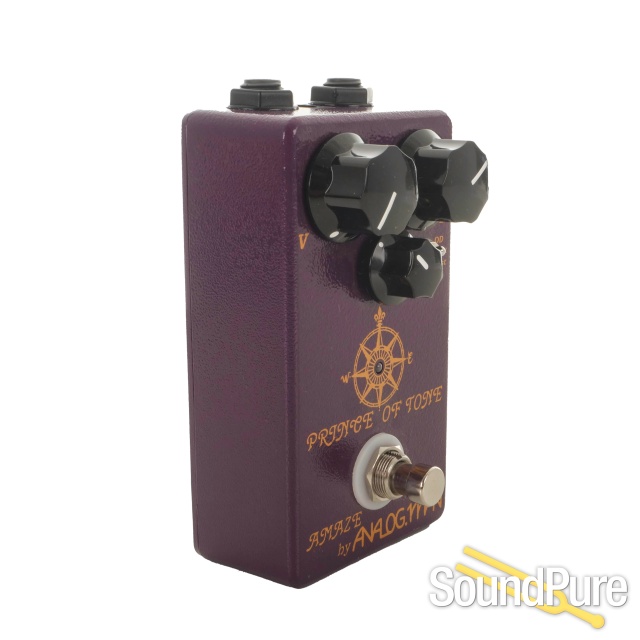

Hand-wired with through-hole construction, the Analog Man Prince of Tone packs the legendary King of Tone drive architecture into a compact format. Featuring a socketed dual op-amp chip and true bypass switching, this versatile pedal toggles between Overdrive, Clean Boost, and Distortion modes via its front-panel switch. External Volume, Tone, and Drive controls work alongside internal DIP switches—for Lo-Mid lift and Turbo crunch—plus a treble trimpot to fine-tune your rig's response. Operating flexibly from 9V to 18V DC with a low 6mA draw, it offers extraordinary dynamic transparency and musical tube-like saturation.

The POT is pretty much the same as half of the King of Tone, with an external MODE switch standard. It is the same as the KOT with HIGHER GAIN option, so the full range of the DRIVE knob is useful and it has a little more drive at the top than a normal gain KOT. The DISTORTION mode is improved though, for a louder, stronger distortion sound. See http://www.kingoftone.com for more info. Specs are very similar to the DUKE OF TONE which we later designed with MXR and also sell.

Power Jack is standard on the POT.

The TREBLE trimpot is inside, just like the KOT.

There are also two new DIP switches inside! They are a bit subtle at some knob settings and modes:

DIP1 : LO-MID lift switch. The tone from your lower strings will be enhanced a little when DIP switch is ON.

DIP2: TURBO switch- with higher gain settings you'll hear deeper compression, especially in DIST mode. You will hear a brighter, crunchier sound with this on at higher DRIVE settings when this DIP switch is ON.

The three modes, as on the KOT, are:

1) Normal Overdrive mode (OD mode): This is the standard King Of Tone sound, - a touch more drive available than a tube screamer. Can get much louder than a tube screamer. The RED side of KOT has this setting from the factory.

2) CLEAN mode : This mode has less distortion, it can be used for clean boosts or clearer, louder sounds. It's sort of a cross between a true clean boost and an overdrive. CLEAN MODE is even less compressed and louder than the OD mode. I love this mode with high drive settings too! The YELLOW side of KOT has this setting from the factory.

3) DISTORTION mode : more distortion than the overdrive mode- a touch of hard distortion. The sound is more compressed, yet retains the pedal's character. Same volume as OD mode.

At low DRIVE settings, or when playing softly, there is not much difference between the three modes, they all can get pretty clean and have the same level at low drive settings. The ability to clean up when playing softly is a very useful feature of this pedal.

The DRIVE knob taper is different than the KOT. It comes up faster and more linear, while KOT has a lot going on from 2:00 to max. So comparison to a KOT with HG option will not be the same at the same knob position unless it's up all the way, where they are the same.

We are making these by hand in China by the same people who are making our Analog Delay. Though it's made in China, we use the same type of parts as the King of Tone - best Japanese chip and capacitors, not cheap Chinese parts. No surface mount parts, NO ROBOTS. Everything is vintage style and hand wired and soldered for easy maintenance and repairs unlike most Chinese pedals and most USA "boutique" machine-made pedals which are disposable if they have any problems like a pot, jack, or switch that wears out.

POWER SUPPLY: A Standard Boss PSA120 type 9V DC adapter will work fine. Center is negative. The pedal uses only about 6mA of current at 9V. You can get a fuzzier sound if you want, at lower voltages, for example the SAG mode on the pedalpower2. When your battery dies you will notice the pedal will not get nice and clean, the sound will be hairier. Use a good Alkaline battery or a power supply for best results. You can use higher voltage for more headroom, 12V is common, 18V is safe too. Clean boost may be improved the most with higher voltage.

CHIPS: You can also try other standard dual op-amp chips in the Prince of Tone. Just make sure you put it in the right way, with the pin#1 dot on the side with the chip socket cut-out. The TS-808's JRC4558D chip sounds good in this pedal, especially with single coil guitars and smaller Fender type amps. You can try a high fidelity chip for the CLEAN mode which may work well.
