From Audio-Technica

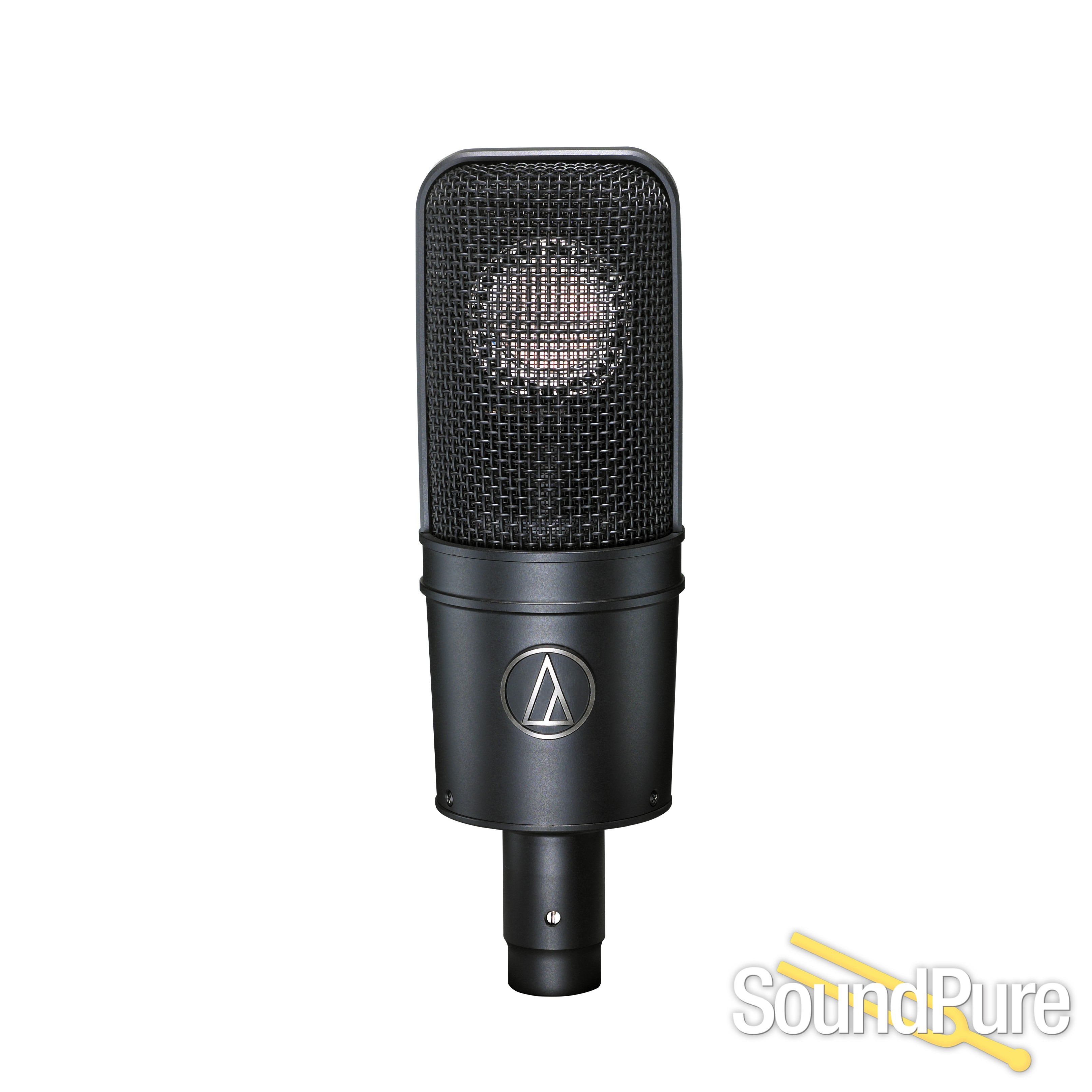

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.
Features
Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
Externally polarized (DC bias) true condenser design
Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

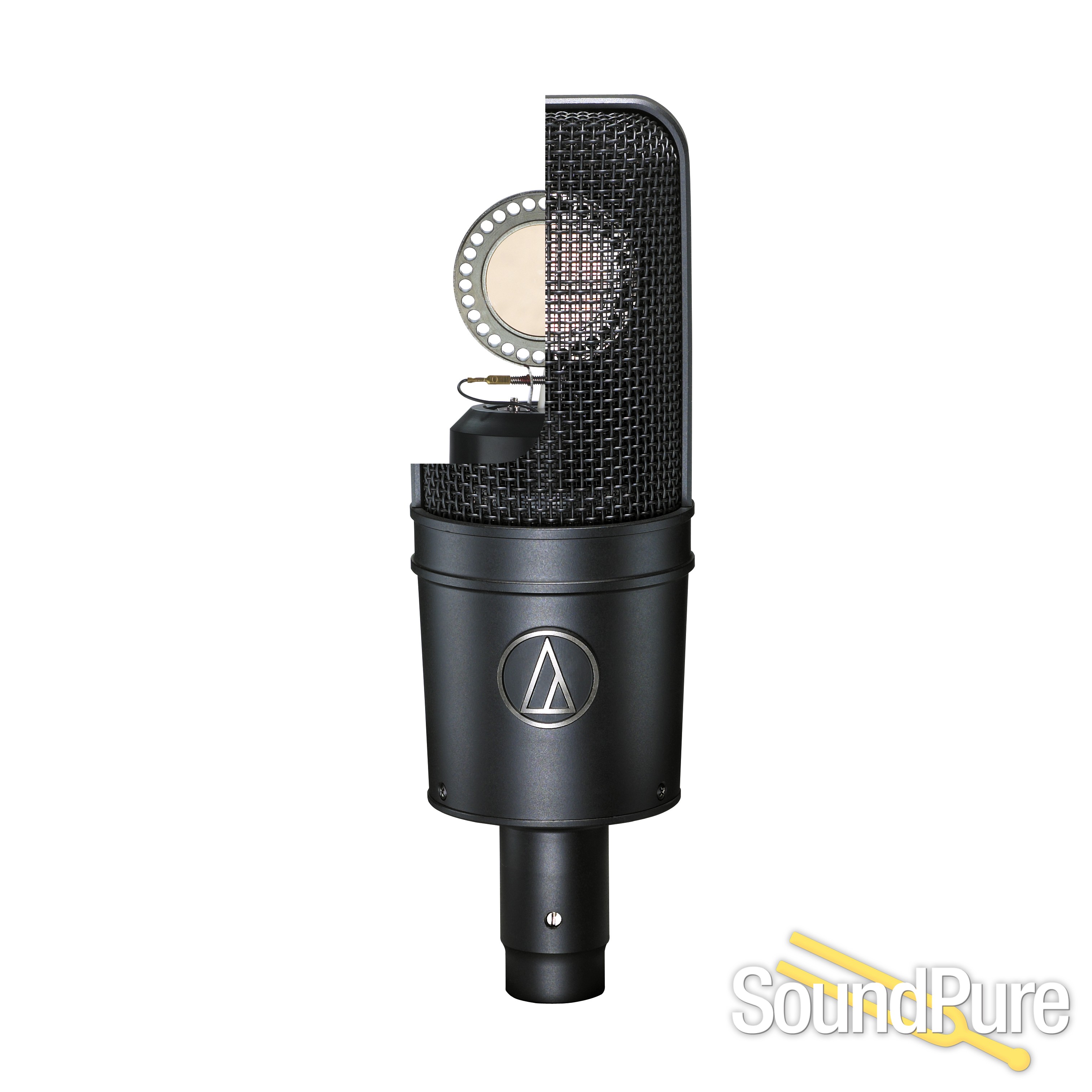

Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

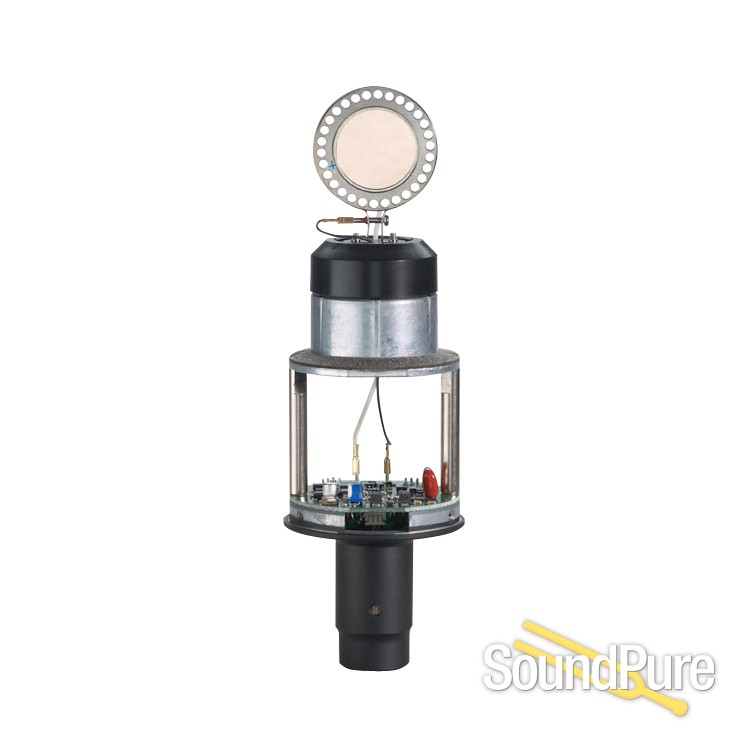

State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

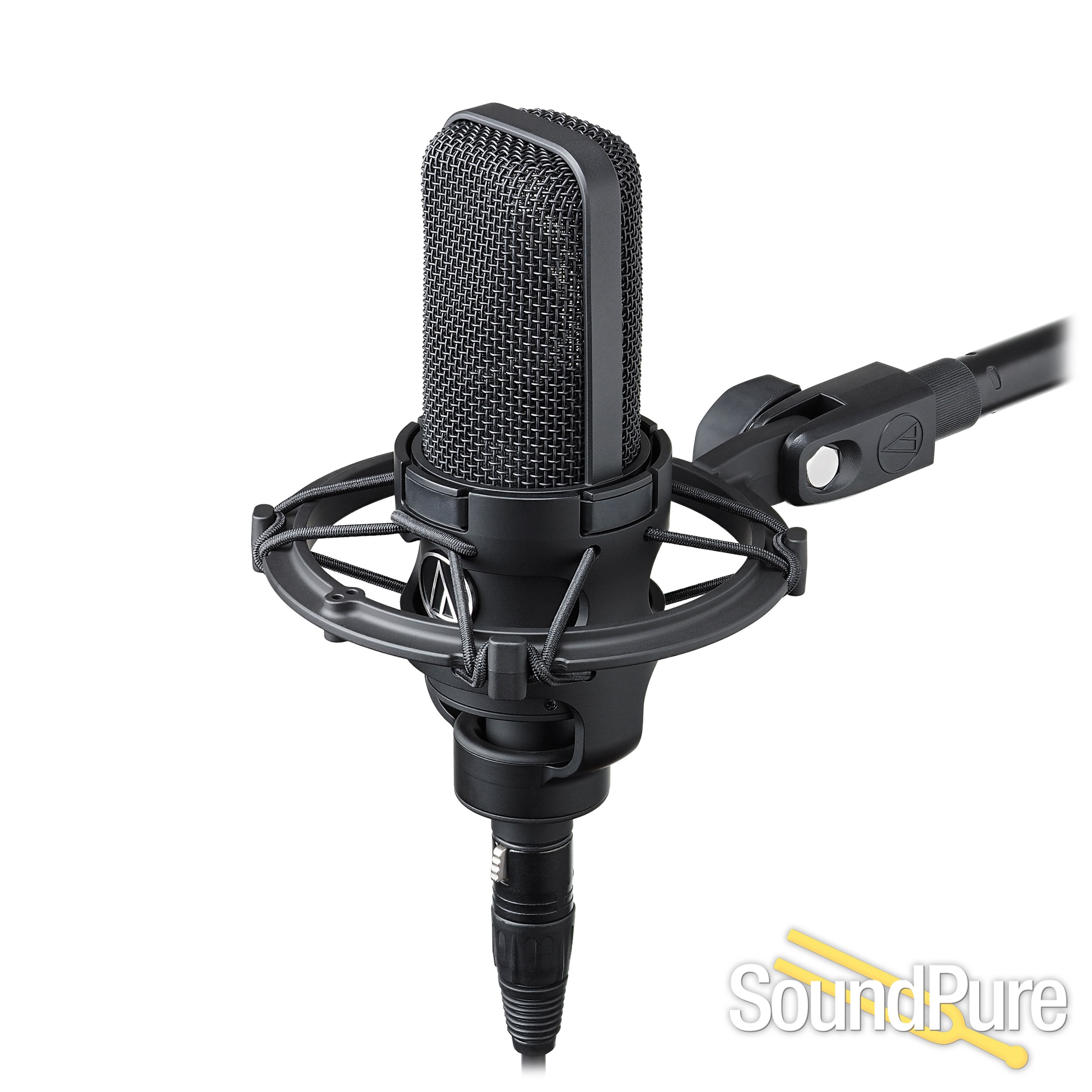

Custom shock mount provides superior isolation
Switchable 80 Hz hi-pass filter and 10 dB pad
| ELEMENT | Externally-polarized (DC bias) condenser |
|---|---|
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -32 dB (25.1 mV) re 1V at 1 Pa |
| IMPEDANCE | 100 ohms |
| MAXIMUM INPUT SOUND LEVEL | 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) |
| NOISE | 12 dB SPL |
| DYNAMIC RANGE (typical) | 133 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 82 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 48V DC, 4.2 mA typical |
| SWITCHES | Flat, roll-off; 10 dB pad (nominal) |
| WEIGHT | 12.7 oz (360 g) |
| DIMENSIONS | 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |

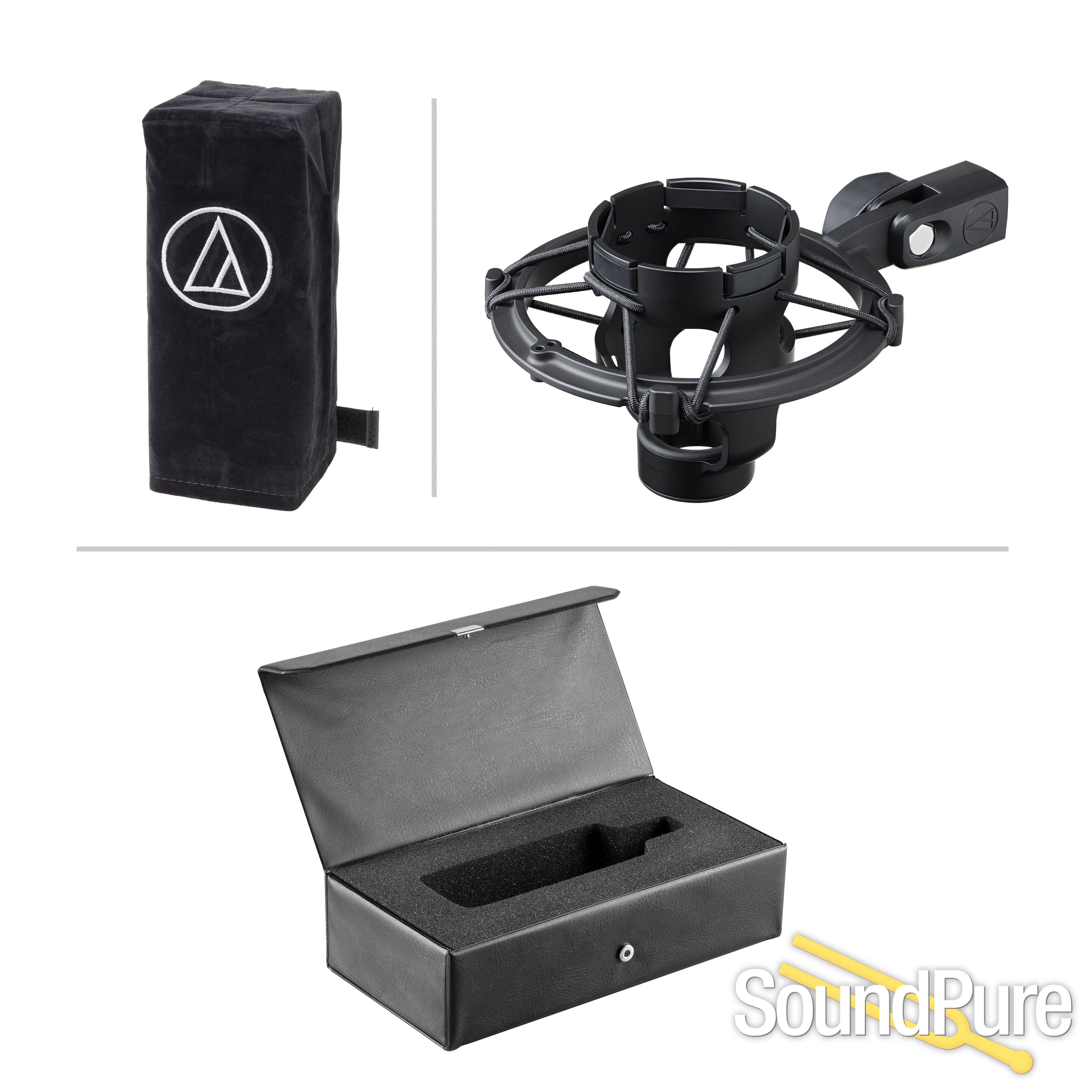

| ACCESSORIES FURNISHED | AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
| AUDIO-TECHNICA CASE STYLE | R1 |
| Click on the chart to view the larger image |
|---|
| POLAR PATTERN |
| FREQUENCY RESPONSE |
Free 3-Year Warranty
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free Sound Pure 3-Year Warranty, which includes parts and labor. It's our way of adding real value to the personal touch our small, dedicated team brings to every purchase.
Coverage exclusions live in Terms & Conditions, Section 27. Read the warranty →
