From Austrian Audio
The Sound of a Legend. Built for Today.

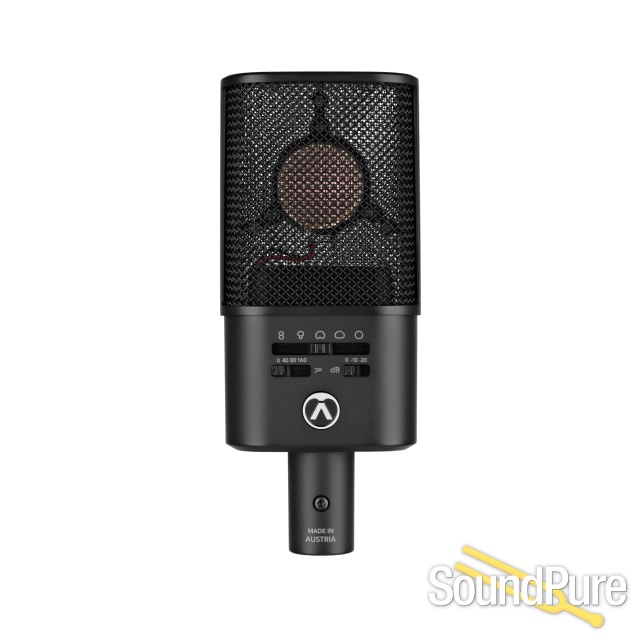

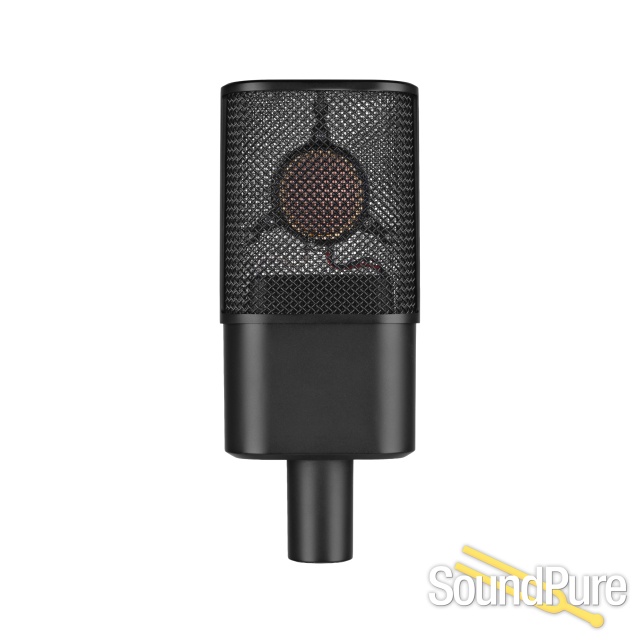

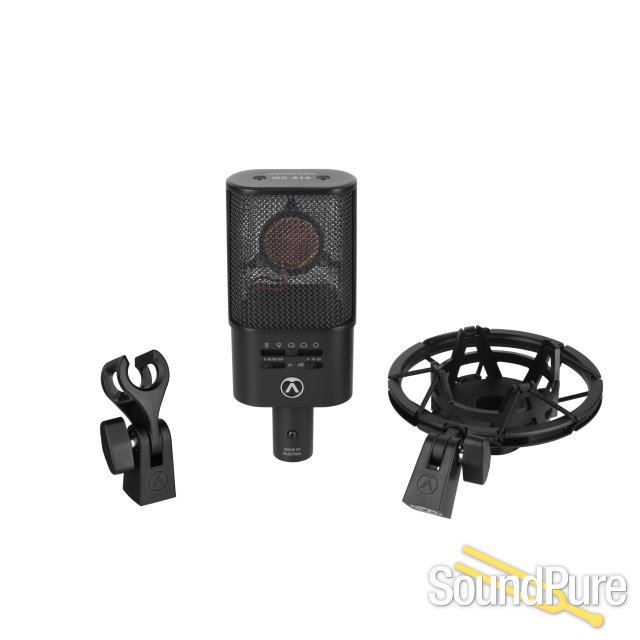

The OC616 is a professional multi-pattern large-diaphragm condenser microphone handcrafted in Vienna and engineered for creators who expect exceptional sound without compromise. At its core is the CKR12 capsule – the next evolution of the legendary CK12 brass capsule – preserving the open, detailed, and musical character that made the original a benchmark while benefiting from the consistency and reliability of modern ceramic engineering.
Built around Austrian Audio's Open Acoustic Technology, the OC616 minimizes internal reflections and acoustic interference before they ever reach the capsule. The result is a remarkably open, transparent, and realistic sound that captures every source with impressive depth, clarity, and precision while remaining honest and natural.
With five selectable polar patterns, three switchable high-pass filters, and two pads, the OC616 adapts effortlessly to virtually any recording environment. It performs equally well on vocals, voice-over, acoustic instruments, guitar and bass amplifiers, drum overheads, brass sections, room microphones, stereo recording techniques including Mid/Side, and demanding live productions.
Its outstanding 157 dB maximum SPL and 134 dB dynamic range allow the OC616 to capture everything from the finest musical nuance to the highest sound pressure levels with exceptional accuracy and control.
Designed and handcrafted in Vienna, the OC616 represents Austrian Audio's commitment to combining legendary capsule heritage with innovative engineering. It delivers the flexibility today's productions demand – from world-class studio recordings to challenging live environments – while providing the natural, detailed, and unmistakably open sound professionals expect from a premium Austrian Audio microphone.
- DIRECTIONAL CHARCTERISTICS
- Omni, Wide-Cardioid, Cardioid, Hypercardioid, Figure-8
- FREQUENCY RANGE
- 20 Hz - 20 kHz
- SENSITIVITY (ALL DIRECTIONS)
- 13mV/Pa
- EQUIVALENT NOISE LEVEL
- 13 dB SPL (A)
- MAX SPL
- 147 dB SPL (157 dB SPL)
- SWITCHABLE PADS
- -10 dB, -20 dB
- LOW CUT FILTER
- 40 Hz (2nd order), 80 Hz (2d order), 160 Hz (1st order down to 80 Hz, 2nd order below)
- IMPEDANCE
- 108 Ω (symmetrical)
- LOAD IMPEDENCE
- > 1 kΩ
- SUPPY VOLTAGE
- 48 V (< 3 mA)
- MAIN CONNECTOR
- XLR 3 pin
- DIMENSIONS
- 156 x 65 x 34mm
- WEIGHT
- 345g
Free 3-Year Warranty
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free Sound Pure 3-Year Warranty, which includes parts and labor. It's our way of adding real value to the personal touch our small, dedicated team brings to every purchase.
Coverage exclusions live in Terms & Conditions, Section 27. Read the warranty →
