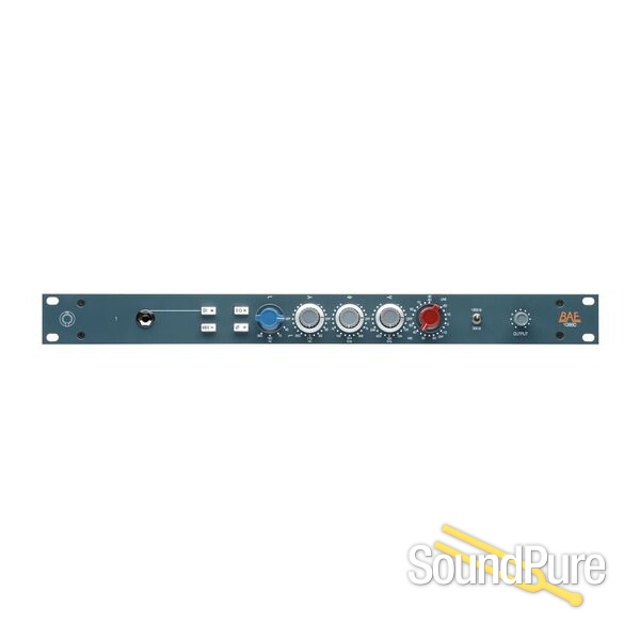

BAE 1066D Pair with Power Supply — image 2

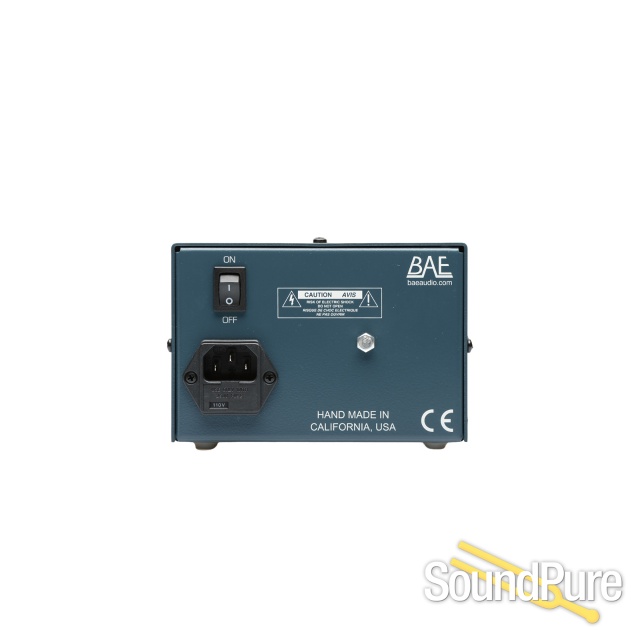

BAE 1066D Pair with Power Supply — image 3

BAE 1066D Pair with Power Supply — image 4

BAE 1066D Pair with Power Supply — image 5

BAE

BAE 1066D Pair with Power Supply

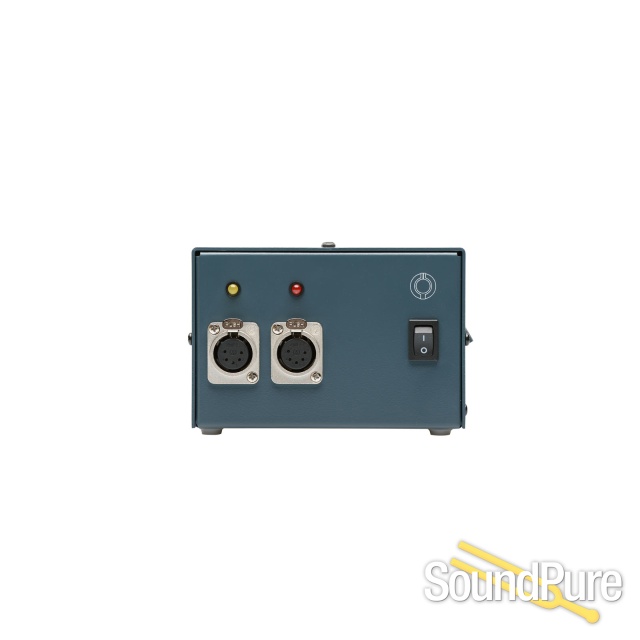

This mic pre + EQ is the preamp of a 1073 with more high-frequency choices and a midrange band with frequency choices tailor picked for guitars. Pair of rackmount modules with power supply.

Choose a version

BAE 1066D Pair with Power Supply Current BAE 1066DL 500 Series Module View BAE 1066D without Power Supply View BAE 1066D with Power Supply View

$6,275.00 or about $261/mo with Affirm Prequalify →

Special order — Usually ships 6–10 business days after order.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Free 3-Year Parts & Labor Warranty (details)
Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

From BAE

The 1066D features the same mic-line pre-amplification stage as the 1073, but features different frequency selections in its EQ for a whole new sonic palette. The available frequencies on the 1066 are especially well suited to guitar applications because of its unique midrange.

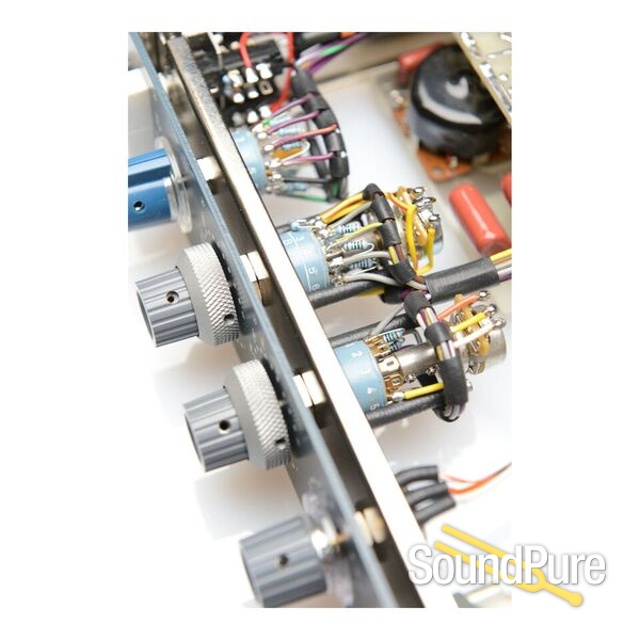

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066DL adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.

High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
EQ Button: Switches the equaliser on or off
Phase Button: 180°

Frequency Response: 10Hz to -3dB at 55kHz

3 Band Equaliser

HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
High Pass Filter: 45Hz, 70Hz, 160Hz & 360Hz
Mic Input Impedance: ≈1200/300 ohms
Line Input Impedance: 10k ohms
DI Input Impedance: ≈150k ohms
Output Impedance: 65 ohms
Common Mode Rejection Ratio: 100dB min @ 60Hz
Maximum Output Level: +27.4 dBu @ 600Ω

Power Requirements

115/230 VAC, 28W

Gain dB: 0 to 80 dB
Equivalent Input Noise: 110 dBu; Unweighted 300kHz Bandwidth

Weight

6 LBS / 2.72 KG

Dimensions in Inches: 45 mm W x 8.75 inches H x 10.5 inches D
