From DPA Microphones (Bruel & Kjaer)

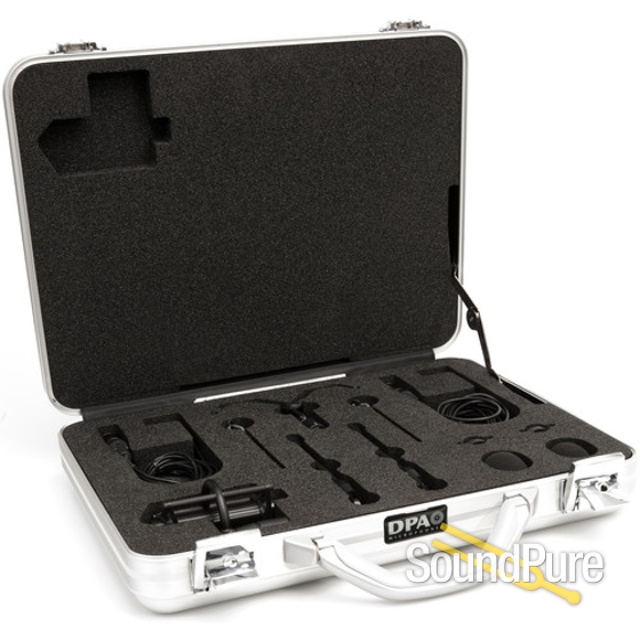

This is a complete stereo kit with two compact 4011ES Cardioid Microphones, with active side cables. The mics are carefully factory-matched within ±1 dB on frequency response and sensitivity in the microphone’s entire frequency bandwidth. The kit includes mics, windscreens, holders, clips, and much more.
Ideal for unobtrusive spot miking, such as hanging or table use, the 4011ES Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from our modular recording mic series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.
The mic features an integrated cable solution. This allows it to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.
The 4011 Cardioid Microphone
The principal appeal of the 4011 Cardioid Microphone is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.
It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels.
A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
| Directional characteristics: | Cardioid |
|---|---|
| Principle of operation: | Pressure gradient |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz to 20 kHz |
| Frequency range, ±2 dB: | 40 Hz to 20 kHz |
| Sensitivity, nominal ±2 dB at 1 kHz: | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted, re. 20 µPa: | Typ. 18 dB(A) re. 20 µPa (max. 20 dB) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 76 dB(A) |
| Total Harmonic Distortion (THD): | < 1 % up to 139 dB SPL peak |
| Minimum load impedance: | 2 kohm |
| Dynamic range: | Typ. 121 dB |
| Max. SPL, peak before clipping: | 159 dB |
| Switchable attenuator: | 0 dB / -20 dB |
| Output impedance: | < 200 ohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 60 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: | Matte black |
| Weight: | 158 g (5.6 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Length: | 170 mm (6.7 in) |
| Output voltage, RMS: | > 5 V |
| Polarity: | +V at Pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (14 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90 % |
| Matching tolerance: | ± 1 dB |
| Phase deviation for kit: | < 10° |
