From DPA Microphones (Bruel & Kjaer)
Visually discreet, the 4015C Wide Cardioids represent an indispensably low-profile solution for audio engineers and set designers alike. Tremendously precise and natural sounding, the compact wide cardioids will excel when used on choirs, percussion setups, grand pianos, wind instruments, and much more. Also useful as spot mics for classical recording, the 4015C blends very naturally in with the main pair.
The specially selected DPA 4015C microphones are matched within ±1 dB on both frequency response and sensitivity.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
Included in this kit

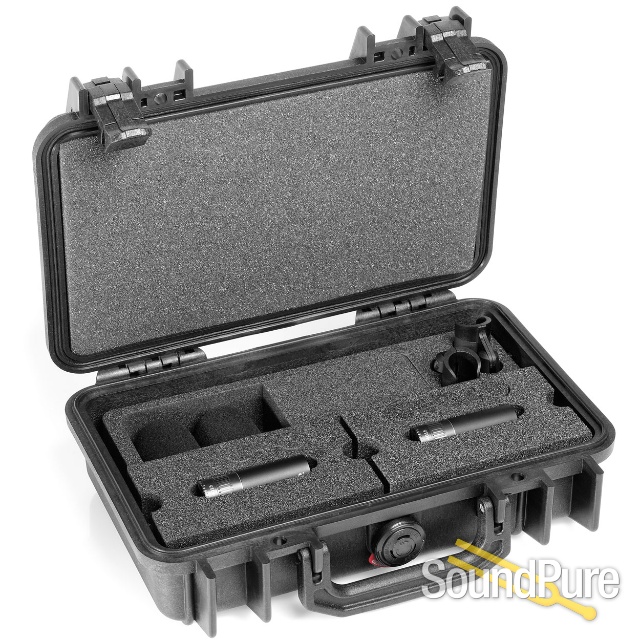

Two carefully matched 4015C wide cardioid microphones, sturdy PeliTM case, holders, and windscreens.
| Directional pattern: | Wide cardioid |
|---|---|
| Principle of operation: | Pressure gradient |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB, at 60 cm: | 40 Hz - 20 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz: | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 25 dB |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 76 dB(A) |
| Total Harmonic Distortion (THD): | < 1 % up to 139 dB SPL peak |
| Dynamic range: | Typ. 121 dB |
| Max. SPL, peak before clipping: | 152 dB |
| Output impedance: | < 200 ohm |
| Minimum load impedance: | 2 kohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 50 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: | Matte black |
| Weight: | 58 g (2 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Microphone length: | 64 mm (2.5 in) |
| Output voltage, RMS: | > 4 V |
| Polarity: | +V at pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
| Matching tolerance: | ± 1 dB |
| Phase deviation for kit: | < 10° |
