From Dynaudio Acoustics

True Bass

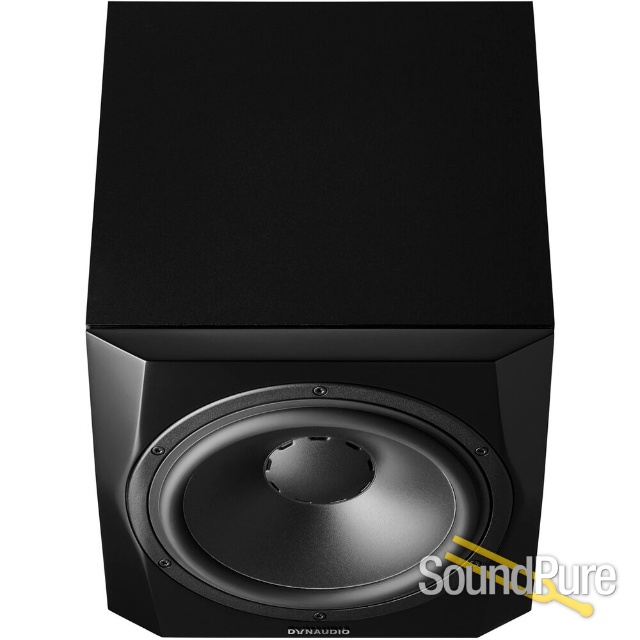

The 9S subwoofer is designed to complement LYD and other Dynaudio Pro studio monitors, including the classic BM range.



Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.





The 9S will expand any studio monitor setup regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.



A long-throw driver ensures the necessary movement to reproduce super low-end frequencies all the way down to 22Hz in great detail. Running the show is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.



Features

 ♦ 300-watt state-of-the-art Class D amplifier module

 ♦ 9in long-throw MSP woofer for accurate low-end frequency reproduction

 ♦ 22-175 Hz frequency range

 ♦ Sealed, black-vinyl cabinet

 ♦ 37mm front baffle

 ♦ Master/Slave feature for daisy-chaining multiple subwoofers

 ♦ Adjustable lowpass filter to set the perfect crossover frequency

 ♦ SAT output with defeatable highpass filter

System:            Single driver, active 9in subwoofer

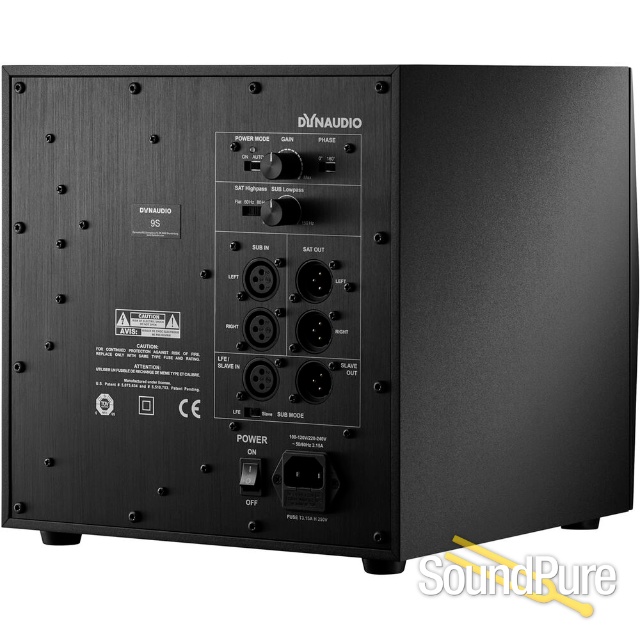

Analog inputs: 1 x XLR LFE, 2 x XLR Stereo

Analog outputs:1 x XLR Slave Out, 2 x XLR SAT Out

Frequency Response (±3dB):22Hz - 175Hz

Max SPL:                  106dB

Auto ON/OFF:  Yes

Box principle:  Sealed

High pass filter:Flat / 60 / 80Hz

Low pass filter:50Hz -150Hz

Specification sheet for Subwoofers part 1

Phase adjustment:0/180 degrees

Woofer:            230mm MSP

Amplifier:        300W Class-D

AC power input:100-120V/200-240V 50/60Hz

Standby power consumption:< 0.5W

Maximum power consumption:350W

Weight:            10.5kg / 23.1lb

Dimensions (W x H x D):266 x 276 x 320mm

Shipping box dimensions (W x H x D):400 x 430 x 400mm

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

Try Before You Buy: 48-hour audition. Program details →

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$1,149
