From Focal Professional Studio Monitors

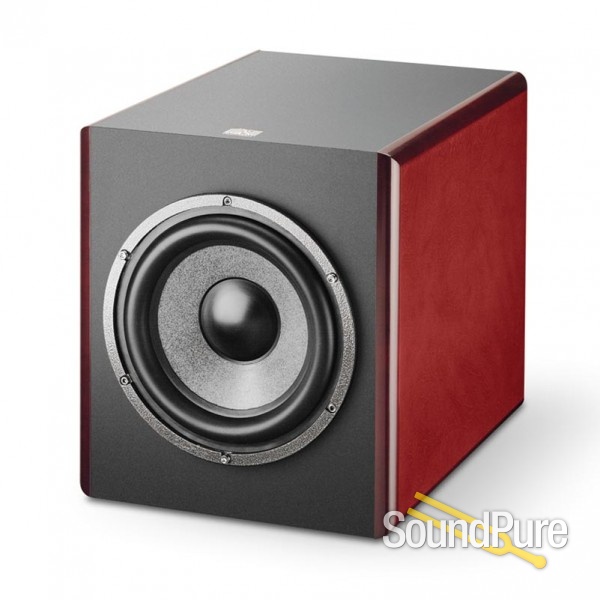

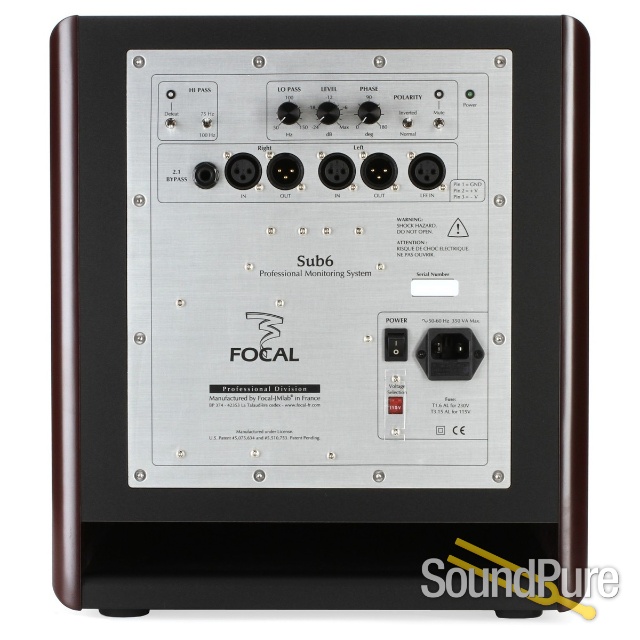

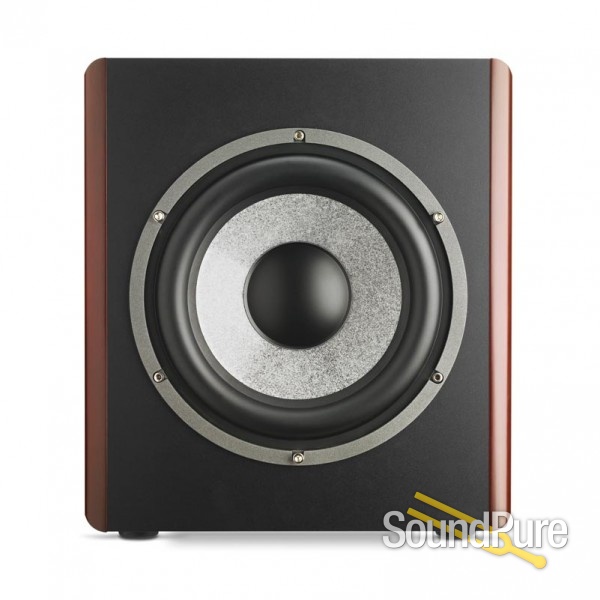

The Sub6 is a large volume cabinet design, equipped with an 11" woofer and a rear laminar port. This configuration guarantees bass linearity whatever the intended SPL. The control board is extremely versatile, with connectivity which allows a 2.1, 2.2 and multichannel use via the L/R inputs and outputs and the LFE.
The numerous settings such as the high-pass crossover dedicated to monitors, the adjustable phase and level control provide optimum coupling with the Solo6 Be and the Twin6 Be monitors.
And finally, a small, but important point: the footswitch input. It enables one to connect a pedal to deactivate the subwoofer and the high-pass crossovers on the outputs that supply the monitors. This simplifies and greatly improves control during the different stages in monitoring.
Specifications
| Frequency response : | 30Hz - 250Hz |
|---|---|
| Maximum SPL : | 116dB SPL (peak @ 1m) |
| Input : | Right, left, LFE Electronically balanced, 10 kOhms XLR 3 points socket Adjustable |
| Outputs (towards speakers) : | Type/Impedance: Electronically balanced / 50 Ohms - Connector: XLR 3 points plug |
| Amplification : | 350W rms, BASH® technology |
| Signal internal treatment : | Subwoofer section: Mono right/left summation LFE + mono low-pass 24dB/octave Phase adjustment Polarity selection switch Switch high-pass filter, cut-off frequency selection Speaker section : 24 dB / octave |
| Electric supply : | Local supply wire: 230V (1.6A fuse) or 115V (3.5A fuse) Connection: removable IEC supply wire |
| Visualization and control : | Adjustable subwoofer level Low-pass cut-off frequency setting Phase adjustment Polarity adjustment Subwoofer switch (mute) 2.1 "Bypass" (external remote contol) High-pass frequency selection Releasable high-pass |
| warning light : | Power on LED, Subwoofer switch (mute), Released high-pass |
| Subwoofer : | 11W7670, 10-5/8" (27cm) Focal "W" composite sandwich cone driver |
| Box : | 7-1/2" (19mm) MDF panels |
| Finish : | Dark red natural veneering side panels, black body. |
| Dimensions (HxWxD) : | 14-15/16 x 13-9/16 x 17-5/16 " (380 x 344 x 440mm) |
| Weight : | 50.7lb (23kg) |
