How to use a multiband compressor
The new IGS Multicore - multiband compressor in action.
Free Shipping
Free 3-Year Warranty
Watch & listen
From IGS Audio
Concept
The Multicore is very versatile tool in your studio. Three bands of classic analog VCA compression provide an infinite field of possibilities to shape the sound. The device can be used as a mix bus compressor or for mastering purposes. Due to separate control of the audio bands it can be applied, for example on vocals to control sibilants without affecting on dynamics of the low band.
Features
The core of device is based on a three band, adjustable active crossover. It splits audio signal into three bands (Low, Mid and High) with a gentle slope of 6dB/oct. That allows you to control the dynamics of each band in a very musical way without phase problems. Each of the bands has its own compressor module equipped with standard controls: Threshold, Ratio, Attack Release and Gain. A very useful feature is Mute/ON/Bypass switch on each band. The "Muted" option allows you to switch off the bands. If you mute two of them, you can hear only one band and monitor its audio content and bandwidth.
The core of device is based on a three band, adjustable active crossover.
Components

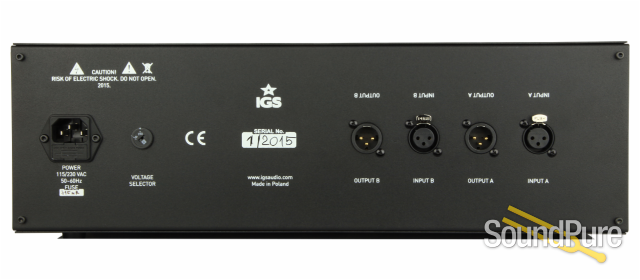

The Multicore has transformer balanced inputs and outputs (Carnhill and IGS Custom). The signal path is made with THT (Through-Hole Technology) components only. Passive components are matched between channels to provide the best L/R correlation. High-quality selected components to ensure the stability of parameters and superior sound. Low noise, negligible crosstalk and high headroom makes the device can be used in the most demanding professional audio applications.
Can be used in the most demanding professional audio applications.
DEVICE TYPE
- VCA Compressor
- 3 band
INPUT & OUTPUT
- Input Impedance (balanced)
- 10k Ohm, IGS Custom transformer
- Output Impedance (balanced)
- 600 Ohm, IGS Custom transformer
- Audio transformers
- Carnhill VTBand IGS Custom
LEVELS
- Operating Level
- +4dBu
- Max input level
- +28dBu
- Max output level
- +28dBu
- Dynamic Range
- 104 dB(A)
- Max Gain Reduction
- 20dB
TIME CONSTANTS
- Ratio
- 2:1, 4:1, 10:1
- Attack
- 0.1, 0.3, 1, 18, 30
- Release
- 0.1, 0.4, 0.6, 0.8, 1.6, Auto
BANDWIDTH
- Frequency response
- 10Hz to 30kHz (+0.3dB/-0.3dB)
DISTORTION (@ 20 HZ - 20 KHZ)
- Signal to Noise Ratio
- 90 dB(A)
THD+N
0.08 %
IMD (SMPTE)
0.03 %
- Crosstalk
- 88dB
POWER
- Voltage
- 115V/230V (selectable)
Power consumption
22 W
PACKING BOX
- Shipping weight
- 10kg
