From KSD Studio Monitors
The KSD A200mk2 is a compact 3-way reference monitor that excels in delivering precise and accurate sound reproduction across various professional production processes, such as recording, mixing, and mastering. Utilizing advanced phase-linear FIRTEC™ technology, the KSD A200mk2 ensures that all frequencies are radiated simultaneously, achieving unparalleled tonal neutrality and timeliness. Its innovative design includes a new mid-high-range unit, combining a 3″ midrange dome and a 1″ tweeter in an aluminum waveguide for a homogeneous sound field suitable for both vertical and horizontal orientations.

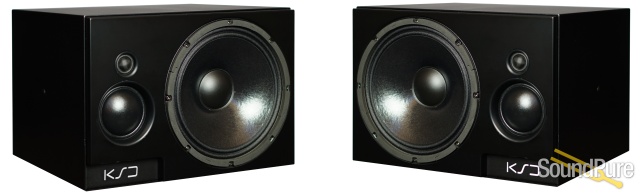

Left and Right units available with either Natural Cherry or Black front panels.
Key Features
-
Proprietary FIRTEC™ Technology: Employs patented phase-linear FIRTEC system filters for timely and accurate sound reproduction across the entire frequency range.
-
Powerful Bass Performance: Features a 10″ high-performance bass driver that delivers a robust low-frequency response starting above 28Hz, providing deep and impactful bass.
-
Optimized Sound Field: The integrated MT/HT waveguide ensures a seamless sound field and linearizes the frequency response, enhancing the overall clarity and fidelity of audio playback.
-
Versatile Connectivity: Offers XLR inputs for both analog and high-resolution digital connections (24 bit/up to 192 KHz), ensuring flexible and high-quality linkages to studio equipment.
-
Direct Digital Drive (DDD) Technology: Incorporates three 250 W RMS power PWM power amplifiers with a converterless connection, minimizing losses and maximizing resolution and authenticity of sound.
-
Customizable Audio Settings: Equipped with adjustable high and low shelving filters on the amp for quick acoustic adjustments, with additional control options available via the optional KSD-RC remote.
-
Precise Volume Control: Allows direct control over listening volume, ensuring a lossless digital connection and accurate sound levels directly from the studio’s master output.
-
May be paired with the KSD B500 Subextension
- Type
- 3-way main monitor
- Inputs
- Analog In +4dBV; Digital In: AES3 32-192KHz fs
- Signal Processing
- In FPGA in 24 Bit ADC/DAC FIRTEC™, patent: 19823110
- Features
- FIR-Xover, Limiter, 6User-EQ, High & Low Shelving, Delay, Gain
- Drivers
- 1″ fabric/silk tweeter, 3″ dome midrange driver, 10″ high-performance bass chassis
- Power Amplifiers
- 250W/250W/150W
- SPL (max)
- 116/124 dB continuous/Peak by pair
- Frequency Response
- 28 – 22000 Hz
- Weight
- 17.2 kg, incl. packaging 20 kg
- Dimensions
- 420 x 300 x 310 mm
- Optional
- Remote Control (KSD-RC) controls 6 user EQs, volume, delay, etc.
- Finish Options
- Front available in Natural Cherry or Black
