From Manley Laboratories Inc

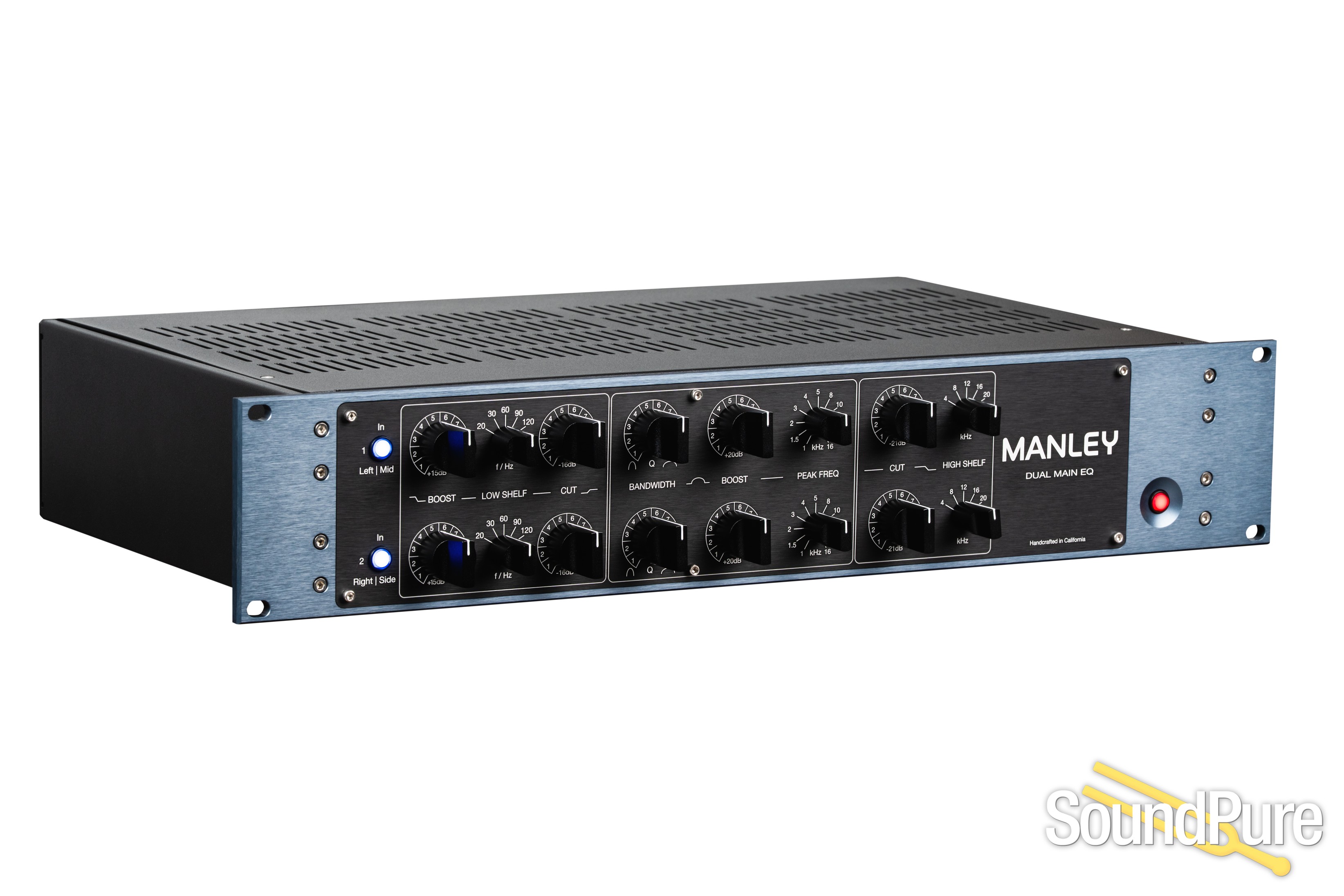

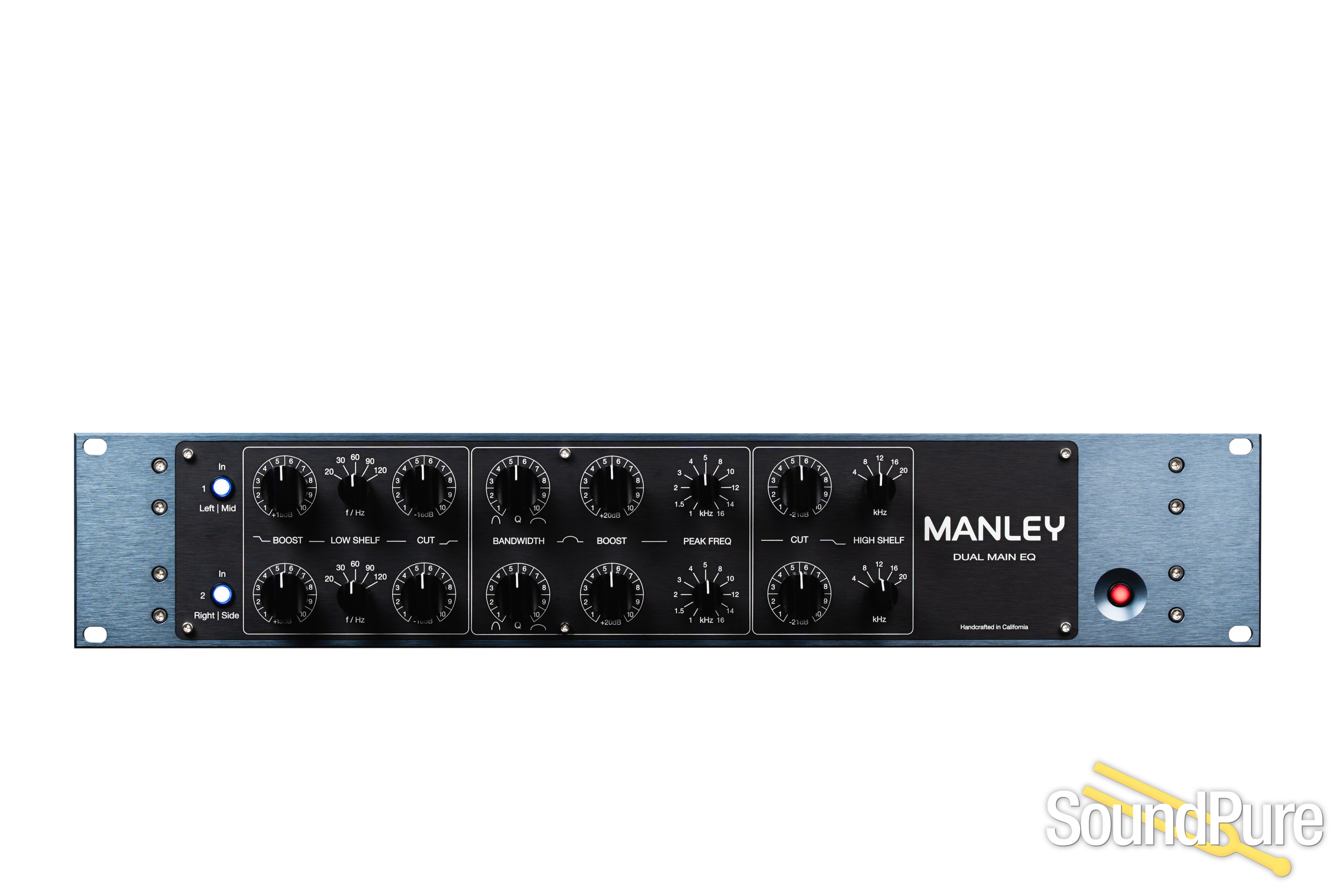

The Manley Dual Main EQ delivers authoritative low-end weight, open and musical highs, and dimensional depth — with perfectly matched stereo operation. A passive inductor-based EQ with high-voltage tube makeup gain and custom Manley Iron transformers, built for mix-bus work, mastering chains, and high-end tracking. Handcrafted in California.
The Manley Dual Main EQ and Dual Mid Band EQ are Manley's 2026 flagship equalizers — modernized, true-stereo evolutions of two of the most respected passive EQ designs in professional audio. Built for mix-bus work, mastering chains, and high-end tracking. Individually exceptional, together unmatched.

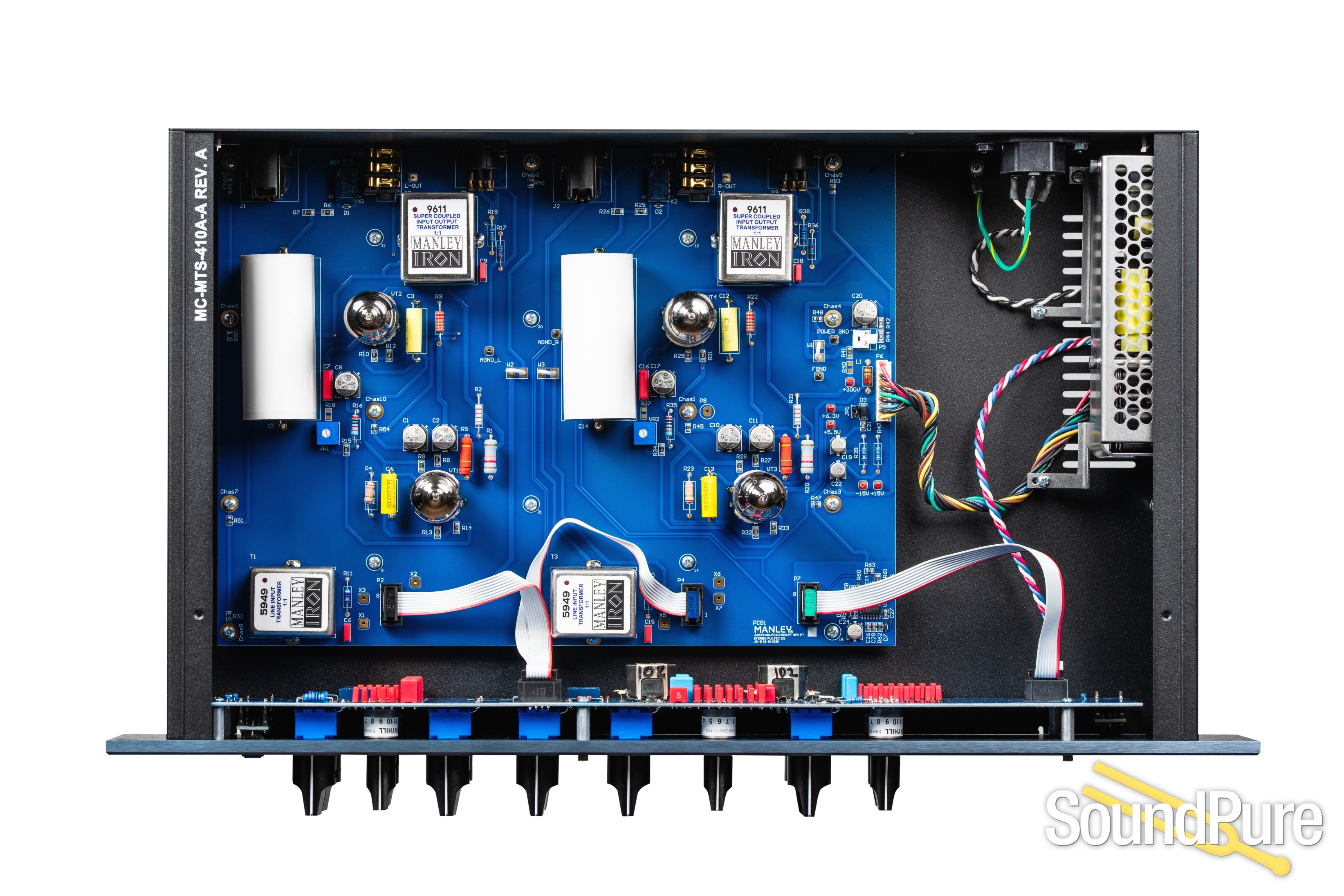

Each unit combines a passive inductor-based EQ network, high-voltage tube makeup gain, and custom in-house wound Manley Iron transformers into a dual-channel signal path designed to do more than adjust tone. The result is equalization that shapes weight, dimension, depth, and musical cohesion — not just frequency balance.
The Dual Main EQ delivers authoritative low-end weight, open and musical highs, and dimensional depth. The Dual Mid Band EQ provides mastering-grade midrange control with smooth, musical precision — shaping presence, clarity, and punch without harshness. Together they form a complete master-bus EQ system; each equally capable as a standalone processor on sources, stems, buses, and mastering chains.
Updated ergonomics, L/R and M/S labeling, and the new Manley logo. Universal switchmode power supply — compatible with all mains voltages, contributing to the unit's extended headroom and low noise floor. Handbuilt in California.
|
|
Dual Main EQ |
Dual Mid Band EQ |
|
Format |
Stereo / Dual Mono |
Stereo / Dual Mono |
|
Topology |
Passive EQ |
Passive EQ |
|
Tube Stage |
2× 5751, 2× 12BH7 |
2× 5751, 2× 12BH7 |
|
Frequency Response (flat within ±0.1 dB) |
20 Hz–22 kHz |
20 Hz–22 kHz |
|
Frequency Response (Total) |
10 Hz–70 kHz |
10 Hz–70 kHz |
|
THD / Noise |
<0.01% |
<0.01% |
|
Signal to Noise Ratio |
96 dB |
89 dB |
|
Max Output |
+30 dBu |
+30 dBu |
|
Dynamic Range |
122 dB |
115 dB |
|
Input Impedance |
5 kΩ |
5 kΩ |
|
Output Impedance |
150 Ω |
150 Ω |
|
Inputs |
Balanced XLR, transformer-coupled |
Balanced XLR, transformer-coupled |
|

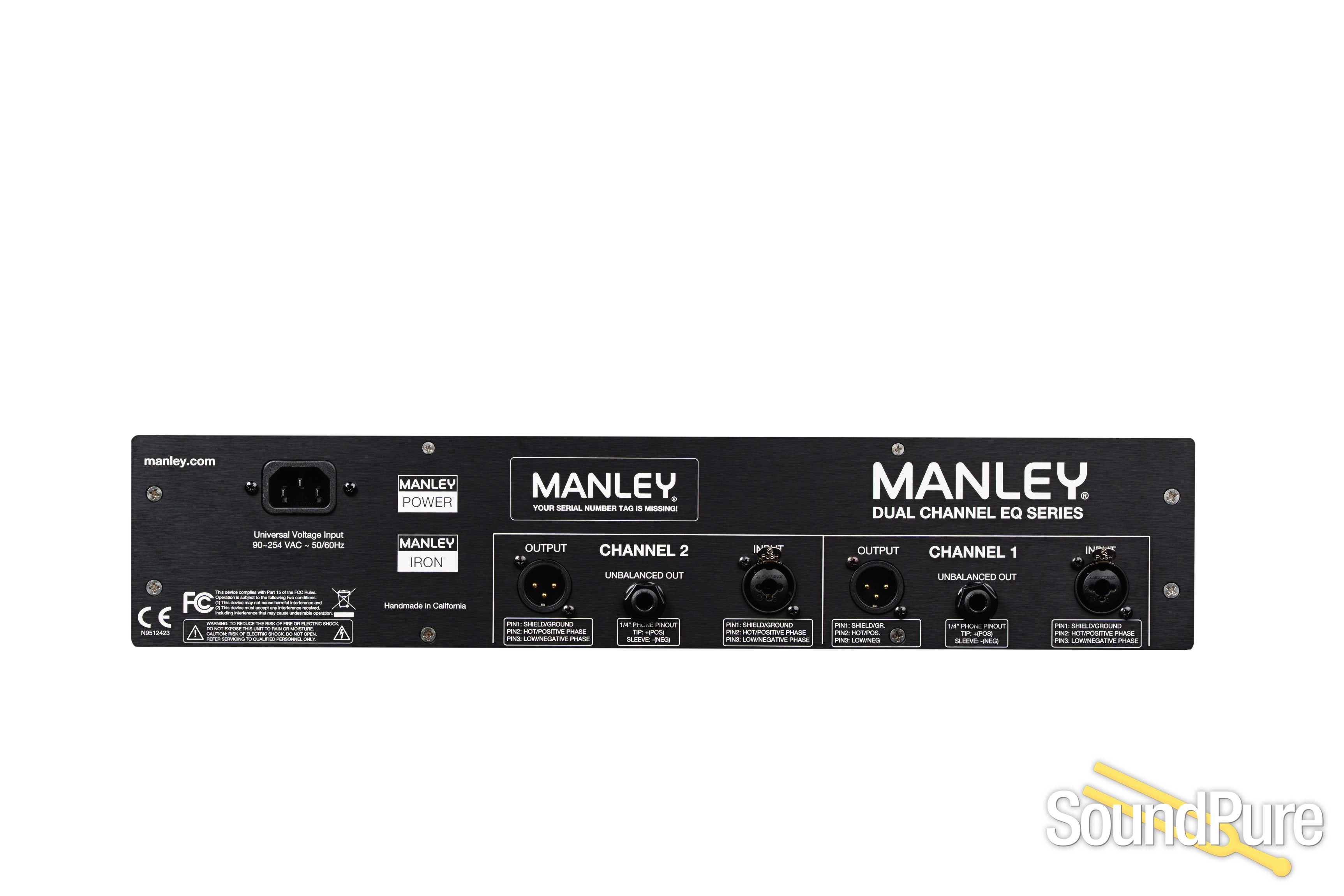

Outputs |
XLR balanced — transformer coupled · ¼" unbalanced — direct coupled |
XLR balanced — transformer coupled · ¼" unbalanced — direct coupled |
|
Transformers |
Manley Iron (in & out) |
Manley Iron (in & out) |
|
Bypass |
All-tube path (not hardwire bypass) |
All-tube path (not hardwire bypass) |
|
Controls |
Silent conductive plastic pots |
Conductive plastic pots |
|
Power Supply |
Universal switchmode |
Universal switchmode |
|
Rack Space |
2U |
2U |
|
Dimensions (H×W×D) |
3.5" × 19" × 7" |
3.5" × 19" × 7" |
|
Unit Weight |
11 lbs |
11 lbs |
|
Shipping Weight |
17 lbs |
17 lbs |
|
Origin |
Handcrafted in California, USA |
Handcrafted in California, USA |
