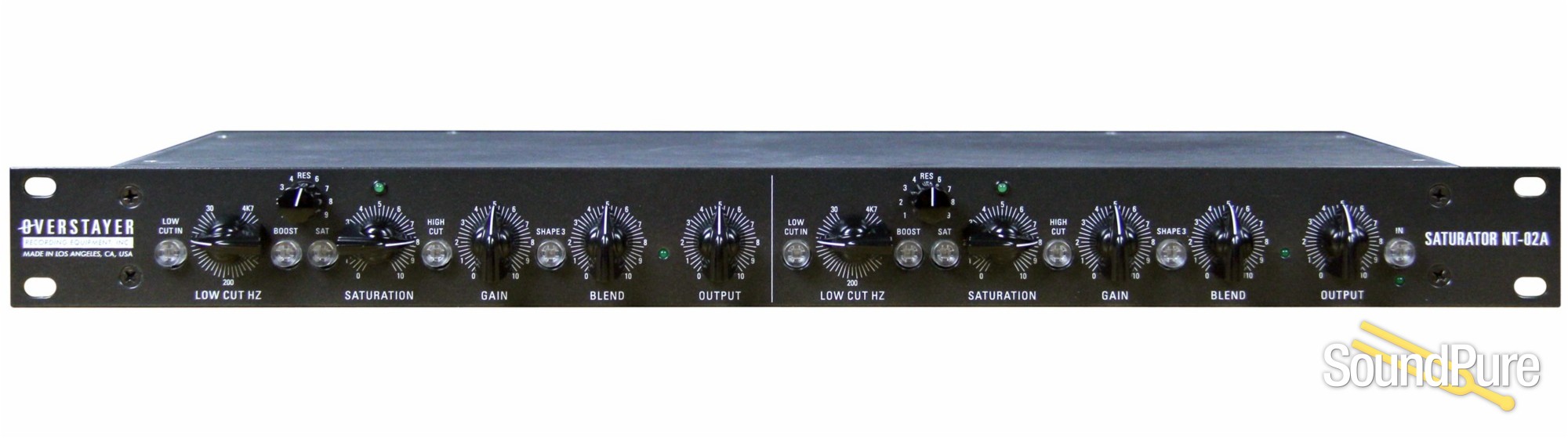

The Saturator NT-02A by Overstayer Recording Equipment is the ultimate studio harmonics and distortion processor. Overstayer brings a fresh approach to mix coloring, opening up a new world of sonic possibilities. Great for coloring just about anything, like drums, loops, synths, bass, vocals or even an entire mix. The Saturator’s comprehensive controls can dial in anything from subtle tape compression effects to extreme distortion, making it an indispensible tool in the digital world.
Low Cut
A bypass-able 12dB (2-pole) high pass filter with resonance control. Wide range sweepable from 30Hz to 4.7KHz. This Low Cut helps define the shape of the distortion and harmonics from the stages that follow.
RES
The Resonance control for the Low Cut. Controls the amount of peaking introduced at the cutoff frequency. With high resonant peaks dialed in at low frequencies, the filter can add huge amounts of low end while cutting sub frequencies below the Low Cut selection. At max setting the resonance can be driven into oscillation. This oscillation can be used to tune the resonance to desired frequency and backed off when found. Monstrous kick drums, giant Dub-style basses, telephone filter effects and self-oscillating harmonics are all possible with the Saturator’s filter section.
Boost
Adds a fixed amount of clean gain to raise low signal levels and/or overdrive the next stage engaged. It also engages a pad after the Gain amp to compensate for the added gain. Functions like a clean boost pedal on the front end of a guitar amplifier.
Saturation
Controls the amount of non-linear amp saturation and soft clipping, ranging from subtle harmonic sweetening to extreme analog saturation. The Saturation section can be bypassed, while still allowing access to filters and the Shape 3 circuit.
High Cut
A fixed 6dB lowpass filter at 6KHz can be engaged to tame high frequencies especially in high gain circumstances.
Gain
A Discrete op-amp primarily provides clean gain, but can be clipped via Boost or high gain settings.
Shape 3
Shape 3 activates a Pre and Post emphasis filter to shape the distortion response of the entire circuit, adding 3rd order harmonic saturation. This functions similarly to tape saturation and can be used in conjunction with the Saturation section or independently.
Blend
This controls the balance between the source signal and the processed signal.
Output
This sets the final output level post-Blend.
In
The master bypass for both channels.
