From Radial Engineering

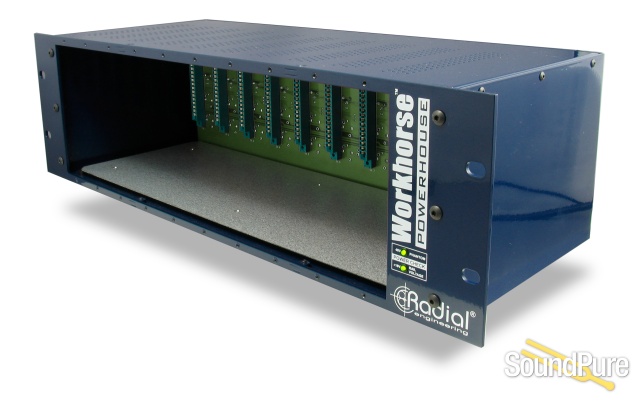

The Powerhouse is a 10 module 500 series power-rack designed to accommodate both older and newer 500 series modules and provide the studio with maximum density in a standard 19" rack frame.
The design begins with heavy 14 gauge steel construction and baked enamel finish for maximum shielding against noise and greater durability when subjected to road use. An 'easy glide' slider tray makes it painless to align the PCB connector to the 15 pin card edge receptacle when swapping modules. Once connected, the rear panel sports a standard array of XLRs to connect to and from the workstation or mixer. This is augmented with a series of ¼" TRS connectors that enable cross-patching and open the door to the excitement of parallel signal processing. Instead of having to hard patch modules together using a cable, the Powerhouse incorporates an innovative feed switch that instantly connects the signal to the adjacent module. This makes building signal chains quick and eliminates the need for extra cables. And unlike older racks that require soldering when modules are used in stereo, the Powerhouse is equipped with a stereo link function that takes care of the task with a simple slide of a switch.
Unlike older racks that are limited to an average of 130 milliamps per slot, the Powerhouse boasts a 1600 milliamp power supply that lets you share the power as needed. This means it can deliver 300 milliamps to your two tube preamps and still have over 1000 milliamps left in the pool! And just like all Workhorse racks, the Powerhouse is equipped with extra safety features to ensure safe use when mixing and matching various brands.
The Powerhouse delivers more flexibility than all others.
- 10-slot design for maximum density
- Individual XLR & ¼" TRS i/o on each slot
- Easy-Glide module alignment tray
- Innovative feed and link functions
The Powerhouse is a ten card-slot 500 series power rack designed to fit three standard 19" rack-spaces (3RU). The Powerhouse follows the guidelines set out in the Workhorse open-source document (Whos-Doc) to accommodate the very latest Radial modules with Omniport™ while being backwards compatible with older modules. This means that it will work with pretty much all 500 series modules. Regarding the audio performance, as there is no audio circuitry other than connectors, the Powerhouse will not impart any color or distortion. The Powerhouse employs gold plated 15-pin EDAC card-edge connectors on the inside plane and nickel-silver Neutrik connectors on the back panel for excellent signal transfer. Each slot is equipped with an auto-resetting fuse to protect the system should a faulty module be employed. A 1600 milliamp external supply provides plenty of current to feed the modules and 48V for phantom power.
| Circuit type: | Connection buss from modules to connectors |
| Card slot inputs: | Eight balanced XLR, ¼" TRS |
| Card slot outputs: | Eight balanced XLR, ¼" TRS |
| Card slot impedance: | Depends on modules used |
| Connector wiring: | XLR: pin-1 ground, pin-2 (+), Pin-3 (-); TRS ¼": tip (+), ring (-), sleeve ground |
| Ground: | Red: audio, Black: chassis |
| Power supply input: | 100V - 240V AC with 48V Phantom |
| Power supply output: | 1600mA - External switching type with 5-pin XLR, 48V phantom; |
| Dimensions: | 19" wide x 5.25" tall x 7.44" deep 482.6 wide x 134 tall x 189mm deep |
| Weight: | 15lbs / 6.9kg |
