General Description

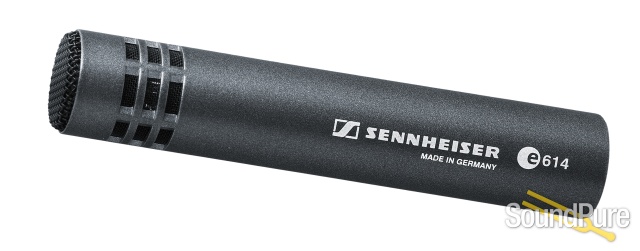

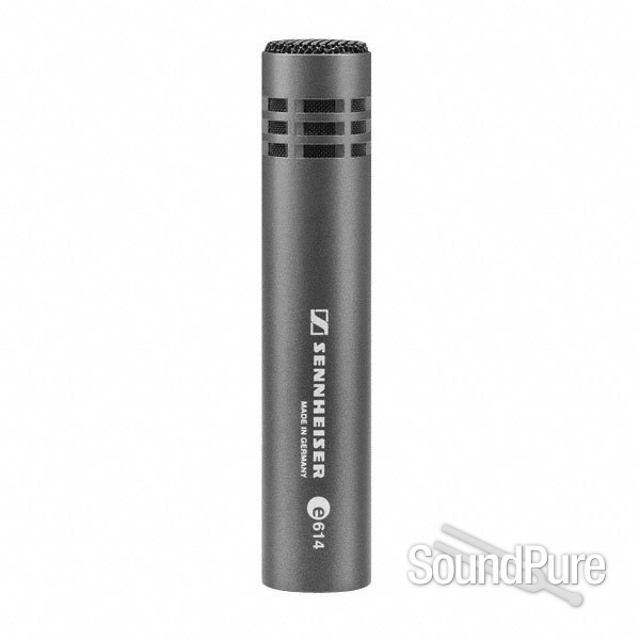

The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.
Features
- 40-20,000 Hz
- Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
- Captures the shimmer and the contact of sticks, mallets and hands
- Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern
Delivery Includes
- Microphone pouch
- Microphone clip MZQ 100
Key Features
- Rugged design
- Full, natural sound
- High maximum sound pressure level
- Effective rejection of incidental rear noise
| Dimensions | ø 0.8 in., L = 3.9 in. |
|---|---|
| Equivalent noise level | 24 dB(A) |
| Equivalent noise level weighted as per CCIR 468-3 | 35 dB |
| Frequency response | 40 Hz - 20,000 Hz |
| Max. sound pressure level (passive) | 139 dB/SPL |
| Min. terminating impedance | 1 kΩ |
| Nominal impedance | 50 Ω |
| Phantom powering | 12-52 V / 3 mA |

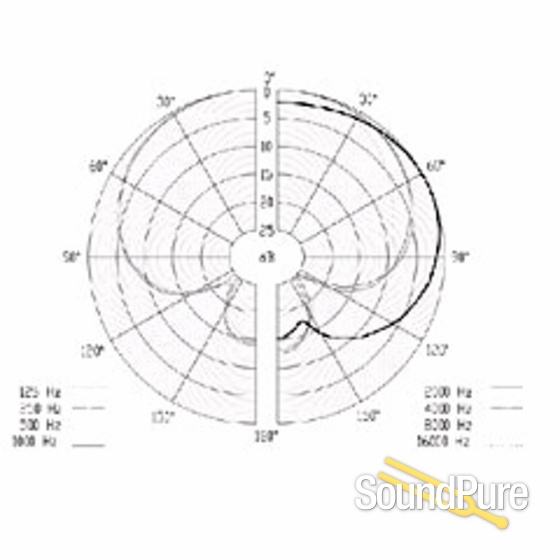

| Pick-up pattern | Super-cardioid |
| Sensitivity in free field, no load (1kHz) | 3 mV/Pa = - 50 dB (0 dB = 1 V/Pa) |
| Transducer principle | Permanently polarized condenser |
| Weight w/o cable | 3.3 oz. (93 g) |
