From Sennheiser
XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
Key Features
♦ Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
♦ Antenna-switching 2-channel diversity reception
♦ Integrated antennas
♦ Automatic frequency management and synchronization via remote channel for easy setup
♦ Selectable UHF frequencies within a large bandwidth
♦ Up to 10 compatible channels
System
- Dimensions
- Ø 48 x L 180 mm
Connector
XLR-3
- Frequency response
- 55 - 16,000 Hz
- THD, total harmonic distortion
- ≤ 0.9%
- Transducer principle
- Dynamic
- Weight
- 330 g (0.73 lbs)
- Pick-up pattern
- Cardioid
- Nominal impedance
- 300 Ω (at 1 kHz)
- Min. terminating impedance
- 1 kΩ
- Storage temperature
- –20°C to +70°C
- Operating temperature
- 0°C to +40°C
- Signal-to-noise ratio
- ≥ 103 dBA
- Switching bandwidth
- Up to 24 MHz
- Modulation
- Wideband FM
- Frequency
- 80 factory presets (8 banks of 10 channels each)
- Sensitivity
- 1.8 mV/Pa (free field, no load at 1 kHz)
Synchronization
- Transmitter
- 2.4 GHz, low power OQPSK (only active during synchronization)
Temperature Range
0 °C ... +40 °C (+32 °F ... +104 °F)

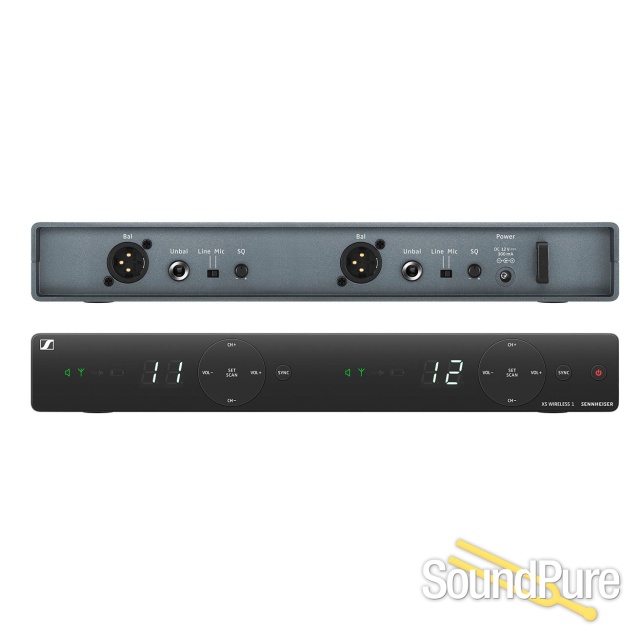

EM-XSW 1 DUAL
- Dimensions
- approx. 320 x 126.5 x 42 mm
- Weight
- approx. 620 g
- Power supply
- 12 V DC nom. / 300 mA
- Output voltage
- (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
- Housing
- Rugged ABS housing
- Sensitivity
- < 3 μV at 52 dB(A) rms S/N (at peak deviation)
- Squelch
- Adjustable from 3 dBμV to 28 dBμV
- AF frequency response
- 50 to 16,000 Hz (–3 dB)
- Audio adjustment range
- 45 dB, adjustable in 5 dB steps
- Line / Mic level
- 20 dB, switchable
- Receiver Principle
- Double superheterodyne
- Diversity principle
- Antenna switching diversity via internal antennas

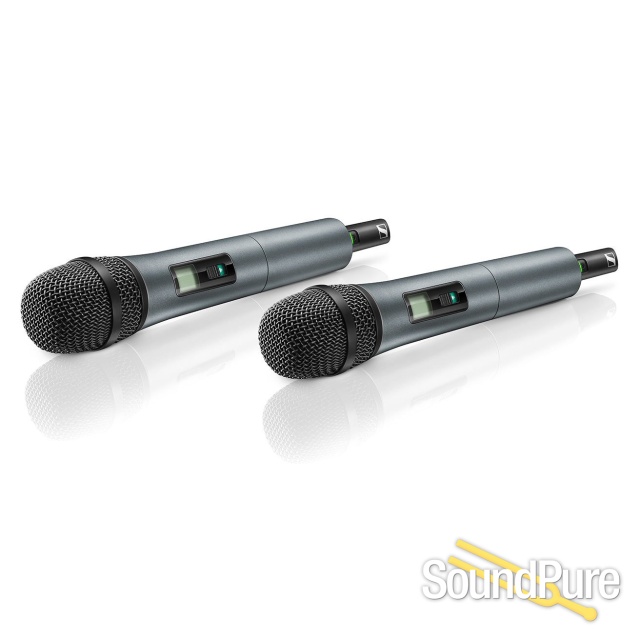

SKM 825-XSW / SKM 835-XSW
- Dimensions
- Approx. 260 x 50 mm
- Microphone
- Dynamic
- Weight
- Approx. 245 g
- Pick-up pattern
- Cardioid
- RF output power
- 10 mW
- Operating time
- Approx. 10 hrs
- Power supply
- 2 AA size batteries, 1.5 V
- Housing
- Rugged ABS housing
- Sensitivity
- 0 to -30 dB, adjustable in 10 dB steps
- Input sensitivity
- 1.5 mV / Pa
- AF frequency response
- 80-16,000 Hz
- Frequency range
- 548-572 MHz
Free 3-Year Warranty
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free Sound Pure 3-Year Warranty, which includes parts and labor. It's our way of adding real value to the personal touch our small, dedicated team brings to every purchase.
Coverage exclusions live in Terms & Conditions, Section 27. Read the warranty →
