LA-610 MkII Classic Tube Recording Channel

Also in this recording Universal Audio LA-610 MkII Classic Tube Channel Strip

The LA-610 MkII combines an all-tube, vintage mic preamp design with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compressi... Read more

The LA-610 MkII combines an all-tube, vintage mic preamp design with authentic Teletronix T4 opto-compression circuitry. This classic channel strip design, with its warm preamp tone and smooth, natural-sounding compression, features true compressor bypass, a large easy-to-read meter, high output level, and an auto-switching power supply.

6176 Vintage Channel Strip Overview

Also in this recording Universal Audio 6176 Vintage Channel Strip

A Classic Tube Microphone Preamp and 1176-Style Compressor in a Single Unit. The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the sig... Read more

A Classic Tube Microphone Preamp and 1176-Style Compressor in a Single Unit. The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the signature FET compression of our 1176LN, to create the ultimate recording channel strip.

From Universal Audio

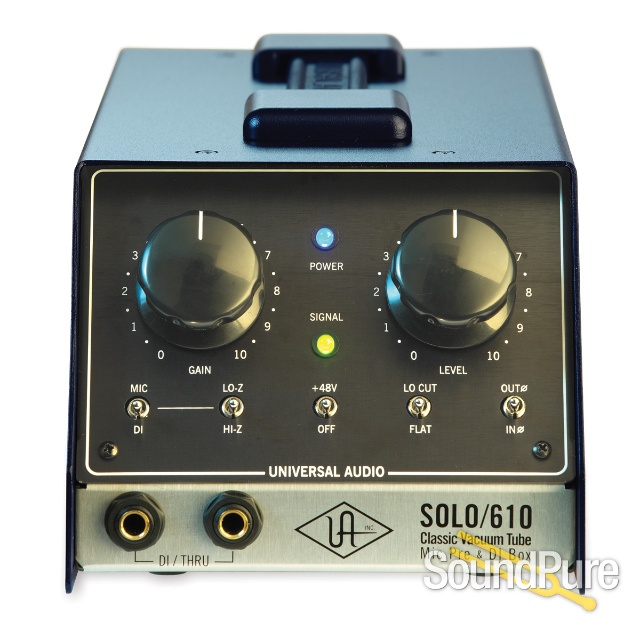

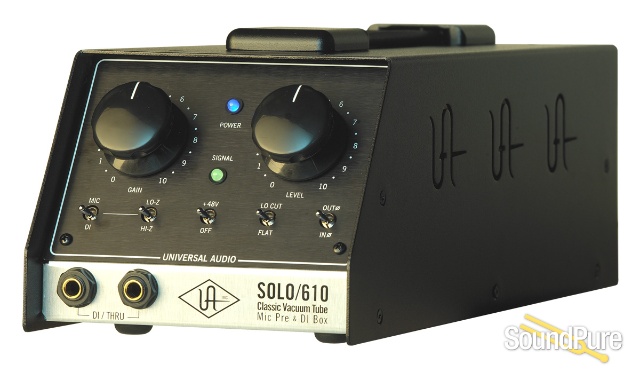

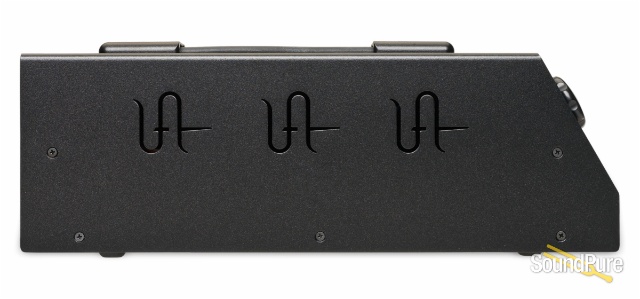

The All-Tube 610 Console Mic Preamp Sound in a Rugged “Go Anywhere” Design

The SOLO/610 delivers the classic Putnam 610 tube console sound in a rugged, highly versatile mic preamp design. This unit provides the silky, vintage warmth of the original console’s mic amp design, and will flatter any microphone or instrument with its signature sound. Thanks to its convenient form factor, the SOLO/610 can be conveniently used in the control room or the recording room, on stage, or on a desktop. Functionally lean but sonically mean, the SOLO/610 maintains the character of the 610 console — at a price every serious project studio can afford.

The SOLO/610 offers Mic and DI inputs, and features Gain and Level control for a wide variety of clean to colored tones. Unlike its predecessors, the SOLO/610 has continuous Gain control with even greater range, allowing for more precise gain structuring — doubling as input signal padding. The SOLO/610 has all the essential features like 48v Phantom Power, Lo-Cut filtering, Phase Reverse and flexible dual impedance selection for both Mic and DI inputs. The SOLO/610 includes essential DI features like Thru use in conjunction with an amplifier, plus Ground Lift and a versatile Mic/Line level output switch.

Features

  • Classic Putnam 610 console mic preamplifier and DI
  • Legendary all-tube sound, at a project studio price
  • Gain, Level, and Impedance selection for maximum tonal variety
  • Portable design for studio, desktop or stage
  • Rugged construction-steel chassis
  • DI features include Thru and Mic/Line level output
  • Hand-built in USA; backed by 1-year limited warranty
Mic Input Impedance
Selectable 450 ohms (Lo-Z) or 1.6 kilohms (Hi-Z)
DI Input Impedance
Selectable 2.2 megohms (Lo-Z) or 50 kilohms (Hi-Z)
Output Load Impedance
20 Hz to 20 kHz +/- 1 dB
Maximum Gain
61 dB
Tube Complement
(1) 12AX7, (1) 12AT7
Maximum Mic Input Level
-12 dBu, 1.0% THD+N Ratio
Maximum Instrument Input Level
+4 dBu, 1.0% THD+N Ratio
Maximum Gain Mic Input
55 dB (1.6K ohm input), 60 dB (450 ohm input)
Mic/Instrument In Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB
Maximum Gain Instrument Input
37 dB
Dimensions
L: 14", W: 5 ¾", H: 5"
Weight
9 lbs.

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$1,199
