Watch & listen

Mojave MA200 Tube Mic Demo -- How to Record Acoustic Guitar

Also in this recording Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter Millennia HV-3R Digital 8 Channel Mic Preamp

The Mojave MA200 Tube microphones is a world class vacuum tube condenser microphone capable of producing extremely warm and musical tube tones, on all sorts of instruments and vocals. Here the Mojave Audio MA200 is used... Read more

The Mojave MA200 Tube microphones is a world class vacuum tube condenser microphone capable of producing extremely warm and musical tube tones, on all sorts of instruments and vocals. Here the Mojave Audio MA200 is used to produce outstanding results in an actual recording studio session, as well as in an untreated space, the Sound Pure Boutique Guitar Showroom. The entire Sound Pure staff was wowed by the sound of these incredible large diaphragm tube condenser microphones from Mojave Audio, designed by David Royer or Royer Ribbon Microphones. Sound Pure would be glad to discuss more about any of these fine microphones, so do call us toll free 888.528.9703, international 919.682.5552, or visit our website where you can learn more about these fantastic mics.

How to Mic an Electric Guitar Amplifier

Also in this recording Royer Labs R-101 Ribbon Microphone Vintech Audio X73i Pre/EQ Victoria Amps Ivy League 14W 1x12 Combo Amp Lynx Aurora 16 I/O D/A and A/D Converter A Designs Pacifica Stereo Preamp

Learn how to record electric guitar by mic'ing the front and back of an amp as well as using a room mic. This video goes into detail on why you would want to use multiple microphones on an amplifier as well as a room... Read more

Learn how to record electric guitar by mic'ing the front and back of an amp as well as using a room mic. This video goes into detail on why you would want to use multiple microphones on an amplifier as well as a room mic to record an electric guitar. Jason Richmond, SoundPure's engineer also demonstrates several different ways to blend the three mics to achieve the sound you want for your mix. To learn more audio engineering techniques, watch some of our other videos, or call SoundPure to learn about the classes and private instruction we offer. 919.682.5552. or 888.528.9703.

Rivera Silent Sister Isolation Cabinet for Electric Guitar

Also in this recording Rivera Silent Sister SS-1 Isolation Cabinet Royer Labs R-101 Ribbon Microphone Lynx Aurora 16 I/O D/A and A/D Converter Rivera Knucklehead-Tre 120 Top Guitar Amplifier Head Sebatron AXIS 200VU Two Channel Tube Preamp A Designs Pacifica Stereo Preamp

The Silent Sister SS-1 recording isolation speaker cabinet by Rivera attacks one of the greatest challenges for musicians: how to get an amplified guitar tone at a low level! This cabinet relieves air pressure through... Read more

The Silent Sister SS-1 recording isolation speaker cabinet by Rivera attacks one of the greatest challenges for musicians: how to get an amplified guitar tone at a low level! This cabinet relieves air pressure through a built in air labyrinth in the back side of the cabinet which attenuates the sound level while relieving the sealed compartment air pressure drawbacks. The panels inside the SilentSister are designed to relieve standing waves and reflections. The cabinet has two pre-wired microphone goose necks to allow for mic placement, handles and wheels for easy transportation, and two Neutrik XLR connectors on the back for signal connection. This isolation cabinet is designed for home and studio recording as well as live performances. Please contact our knowledgeable staff here at SoundPure with all your questions and orders! 919.682.5552 or 888.528.9703

Millennia HV3 Mic Pre Video Demo & Highlight Reel

Also in this recording Millennia HV-3R Digital 8 Channel Mic Preamp Lynx Aurora 16 I/O D/A and A/D Converter Rivera Amps Venus 6 1x12 Guitar Combo Amplifier CharterOak SA538B Tube Microphone CharterOak E700 FET Multi-Pattern Condenser Microphone Peluso P-67 Switchable Pattern Tube Microphone Victoria Amps Victorilux 45W 2x12 Combo Amp

The Millennia HV3 is known as a world class microphone preamplifier. The same great circuit design is used in a variety of Millennia preamps including the HV-3d (4 and 8 channell versions), the HV3c, the HV3r Remote Cont... Read more

The Millennia HV3 is known as a world class microphone preamplifier. The same great circuit design is used in a variety of Millennia preamps including the HV-3d (4 and 8 channell versions), the HV3c, the HV3r Remote Controllable Mic Preamp with optional A/D conversion card, the Millennia STT1 Origin Channel Strip, and the TD-1 DI and Mic Pre. While Millennia Mic Preamps are definitive in the classical and jazz worlds, it is truly outstanding in all serious recording studio applications, where the sound company out of the microphone is just right, as-is. Visit our blog on the Millennia products, and be sure and check out our numerous other videos on the individual products in the line. Contact us with any questions, or to pick your next great mic preamp up- we can be reached toll free 888-528-9703.

Eastman AC420 Acoustic Guitar Demo

Also in this recording Lynx Aurora 16 I/O D/A and A/D Converter Earthworks 1024 Quad Mic Pre with Zero Distortion Technology

The AC420 from Eastman is an impeccably crafted, all solid-wood, flat top guitar. Eastman acoustics are entirely handmade by skilled luthiers. This model features Indian Rosewood back and sides with a Sitka Spruce top. T... Read more

The AC420 from Eastman is an impeccably crafted, all solid-wood, flat top guitar. Eastman acoustics are entirely handmade by skilled luthiers. This model features Indian Rosewood back and sides with a Sitka Spruce top. The sound is crisp and punchy with that classic dreadnought presence. The fact that Eastman can make this guitar at this price-point is utterly amazing. You won't find a better price on an all-solid-wood dread anywhere. Here at Sound Pure, we've been pretty blown away by the Eastman acoustic guitars ever since they came out. Comes standard with a hardshell case and limited lifetime warranty.

Lowden F23c Acoustic Guitar Demo Recording

Also in this recording Lowden F23C Cedar/Walnut 16717 Acoustic Guitar Millennia HV-3R Digital 8 Channel Mic Preamp Lynx Aurora 16 I/O D/A and A/D Converter

This impressive George Lowden F23c (F23 cutaway) with a Cedar top and Walnut back and sides is one magical sounding acoustic guitar. This demo was recorded simply using a spaced stereo pair of Mojave MA200 Large Diaphrag... Read more

This impressive George Lowden F23c (F23 cutaway) with a Cedar top and Walnut back and sides is one magical sounding acoustic guitar. This demo was recorded simply using a spaced stereo pair of Mojave MA200 Large Diaphragm Tube Condenser Microphones, into the Millennia HV3R mic preamp with really excellent-sounding results. This guitar and the recording equipment is available through Sound Pure for purchase. Any of our recording experts, or guitar experts are here to help you with any questions that you have, and can be reached toll-free anytime at 888-528-9703.

Recorded with this gear

Mojave MA 200 Sacred Gong Clip

This excerpt from a live CD by Kat Lyons was recorded at The Integratron, an acoustically perfect tabernacle and energy machine sited on a powerful geomagnetic vortex in the magical Mojave Desert, by David Royer and Dust... Read more

This excerpt from a live CD by Kat Lyons was recorded at The Integratron, an acoustically perfect tabernacle and energy machine sited on a powerful geomagnetic vortex in the magical Mojave Desert, by David Royer and Dusty Wakeman in December,2005. Recorded direct to CD using a pair of Mojave MA200's through an 'ammo case' micpreamp, custom made by David. Encoded here from 44.1k, 16-bit to 192 mbps MP3 format.

From Mojave Audio

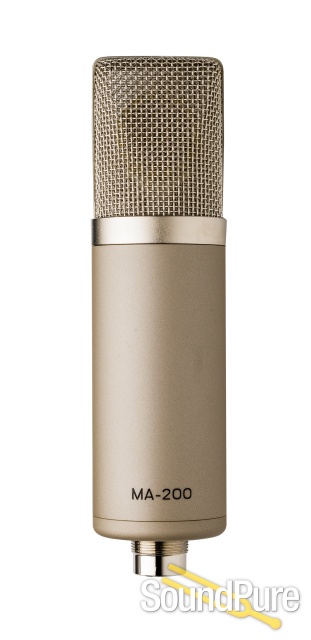

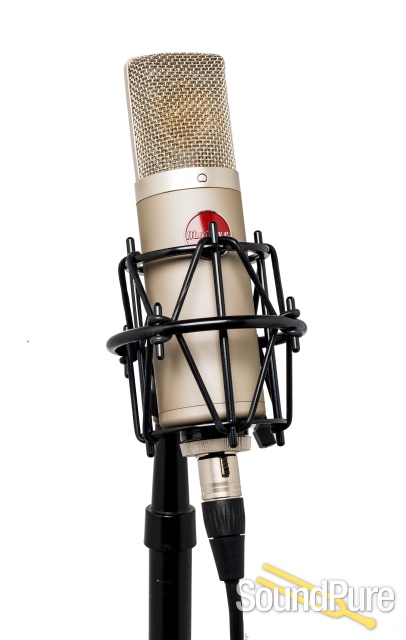

Born to a lineage of fine microphone designs by David Royer, the MA-200 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Utilizing hand-selected 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-200 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-200 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-200 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Features:

  • Hand-selected 3-micron capsule
  • Jensen audio transformer
  • Military grade JAN 5840 vacuum tube
  • Internal switchable power supply voltage
  • Ultra clean signal path

Recommended applications:

Use anywhere you would use an expensive, large diaphragm tube microphone.

  • Vocals
  • Voice Over and Broadcast
  • Acoustic Instruments
  • Piano
  • Drum Overheads, Drum Rooms
  • Orchestral Recording
  • Choral Recording
TRANSDUCER TYPE
Externally excited capacitor type
DIAPHRAGM
1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS
3-microns

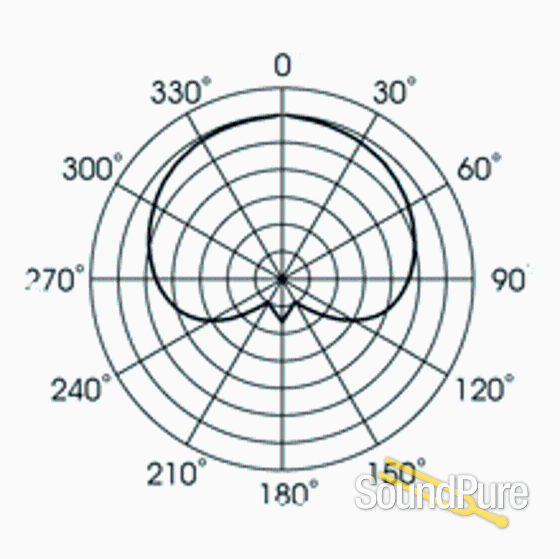

POLAR RESPONSE
Cardioid

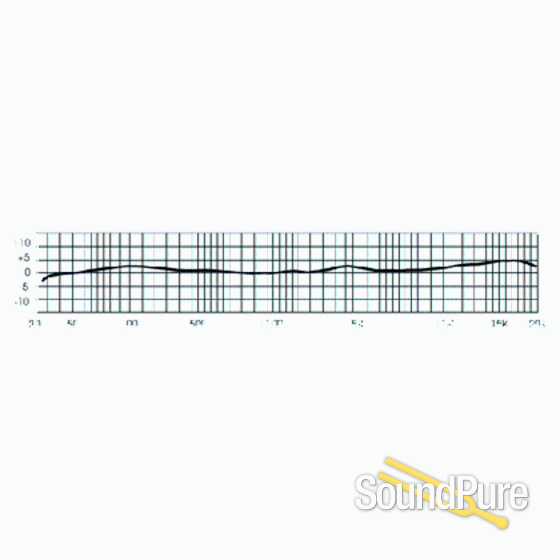

FREQUENCY RESPONSE
20 Hz - 20 kHz, +/-3dB
SENSITIVITY
-37dB re 1V/pa
MAXIMUM SPL
120dB
DISTORTION
head amp only, <1% @117dB SPL, <3% @ 125dB SPL
SELF NOISE
14db nominal, not to exceed 16db (A Weighted)
IMPEDANCE
200 ohms, balanced using an output transformer
VACUUM TUBE
5840 - pentode tube wired for triode operation
POWER REQUIREMENTS
100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts.
DIMENSIONS AND WEIGHT

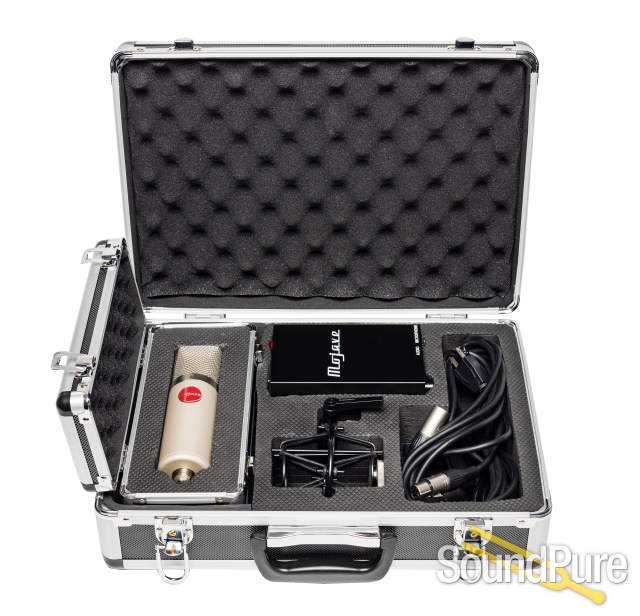

Carrying case with microphone, power supply, shock mount
and cables
13 lbs.
Microphone
7 5/8" X 2", 1 lb.
