Watch & listen

Earthworks 1021 1022 1024 Mic Preamp Video Demo

Also in this recording Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Earthworks SR40 mp Cardioid Microphone (Pair) Earthworks QTC40 mp Time Coherent Omnidirectional Microphone (Pair) Earthworks PM40 Piano Microphone System Peluso P-67 Switchable Pattern Tube Microphone Telefunken Elektroakustik AR-51 Microphone Evans RE200 Guitar Amplifier Combo

The Earthworks 1021, 1022, and 1024 Zero Distortion Preamps are completely free of noise and distortion, and are really a lot like "wire and gain." Such transparency, accuracy and detail in a mic preamp are extremely... Read more

The Earthworks 1021, 1022, and 1024 Zero Distortion Preamps are completely free of noise and distortion, and are really a lot like "wire and gain." Such transparency, accuracy and detail in a mic preamp are extremely useful when the sound of the instrument coupled with an amazing microphone should not be compromised. The Earthworks preamp will not add its own coloration and artifacts like just about every other preamp on the market. It is designed to delver the sound coming out of the microphone exactly that way, as if there is no preamp in the signal path whatsoever. In this video we demonstrate this performance through a variety of microphones and sources including recording acoustic guitar, piano, jazz archtop guitar, and electric guitars. Give us a call to discuss this amazing distortion-free preamp, toll free 888.528.9703.

McPherson Guitars 4.5XPH Acoustic Guitar Demo (Hybrid Flamed Redwood, Brazilian Rosewood)

Also in this recording McPherson 4.5XPH Flamed Redwood/Brazilian Rosewood #1744 Earthworks SR40 mp Cardioid Microphone (Pair) Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter

The 4.5XPH from McPherson is a stunningly beautiful sounding and gorgeous looking guitar. The Flamed Redwood top is a perfect match for the Brazilian back and sides, both aesthetically and tonally. The bold, complex tone... Read more

The 4.5XPH from McPherson is a stunningly beautiful sounding and gorgeous looking guitar. The Flamed Redwood top is a perfect match for the Brazilian back and sides, both aesthetically and tonally. The bold, complex tone sustain and overtones will impress guitar enthusiast of all kind. This guitar is just as much a work of fine art as it is a tone monster! Generally considered the best tonewood for steel stringed instruments; Brazilian Rosewood is a highly prized choice for back and sides. Endangered and becoming very rare, Brazilian Rosewood has everything other rosewoods have to offer and more. A rich powerful sound full of overtones and depth. McPherson doesn't make many of these, so be sure to talk to a Sound Pure Guitar Department Representative today. 919.682.5552 or 888.528.9703.

Buscarino Monarch Archtop Guitar Demo

Also in this recording Buscarino Monarch Custom SP06105510 Lynx Aurora 16 I/O D/A and A/D Converter Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Peluso P-67 Switchable Pattern Tube Microphone Evans RE200 Guitar Amplifier Combo

The Monarch Custom from John Buscarino is a classic 17" archtop guitar. It can be heard here acoustically as well as amplified. The tone is warm and sweet. You can hear plenty of punch with fantastic clarity as John's gu... Read more

The Monarch Custom from John Buscarino is a classic 17" archtop guitar. It can be heard here acoustically as well as amplified. The tone is warm and sweet. You can hear plenty of punch with fantastic clarity as John's guitars are known for. This one features European Cello woods upgrade, birdseye binding and a virtuoso sideport for upgrades from the standard model. Here at Sound Pure we specialize in high-end archtop guitars. We are happy help you put together a custom order or match you with one of the fine archtops from our extensive inventory. Don't hesitate to contact us. 888.528.9703

Telefunken AR51 Tube Microphone - Acoustic Guitars Video in the Recording Studio

Also in this recording Telefunken Elektroakustik AR-51 Microphone Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter Great River Electronics MP-2NV Stereo Preamp

Telefunken AR51 tube microphones beautifully record acoustic guitars with warmth and smoothness in the midrange, a nice tight bottom-end, and an open and brilliant top. In the first segment the mic on the right was place... Read more

Telefunken AR51 tube microphones beautifully record acoustic guitars with warmth and smoothness in the midrange, a nice tight bottom-end, and an open and brilliant top. In the first segment the mic on the right was placed near the 12th fret of the guitar and the microphone on the left was placed over the guitarist right shoulder. This approach creates a very large and balanced stereo image. As you can hear, these mics are warm and very pleasing in the mid range and articulate in the top end without being overly bright. You will then hear a studio recording of a stereo pair of the Telefunken AR51's on a Martin HD28. In this setup we hear more body from the acoustic due to the placement of the the mics than we did in the previous example, nicely displaying the versatility of the Telefunken AR51's in the recording studios. Please don't hesitate calling any of us here at Sound Pure, we are here to help in any way that we can- call us toll free 888.528.9703

Peluso P67 Tube Microphone Demo -- Guitars

Also in this recording Peluso P-67 Switchable Pattern Tube Microphone Lynx Aurora 16 I/O D/A and A/D Converter Victoria Amps Victorilux 45W 2x12 Combo Amp Millennia TD-1 Pre EQ DI Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Evans RE200 Guitar Amplifier Combo

The Peluso P-67 is Peluso's latest creation, and is a stunning replica of some of the finest museum quality Neumann U67 tube microphones that he was able to get his hands on. The Peluso P67 like the Neumann U-67 is extre... Read more

The Peluso P-67 is Peluso's latest creation, and is a stunning replica of some of the finest museum quality Neumann U67 tube microphones that he was able to get his hands on. The Peluso P67 like the Neumann U-67 is extremely well known for it's performance recording electric guitars, upright bass, acoustic guitars, vocals, and many other things. In this demo, you hear how wonderful this wonderfully well built microphone performs. Please don't hesitate to give us a call to discuss this or any of the other incredible Peluso Microphones that we sell here at Sound Pure- you can reach us toll free 888.528.9703.

Eastman AC420 Acoustic Guitar Demo

Also in this recording Mojave Audio MA-200 Tube LDC Microphone Lynx Aurora 16 I/O D/A and A/D Converter Earthworks 1024 Quad Mic Pre with Zero Distortion Technology

The AC420 from Eastman is an impeccably crafted, all solid-wood, flat top guitar. Eastman acoustics are entirely handmade by skilled luthiers. This model features Indian Rosewood back and sides with a Sitka Spruce top. T... Read more

The AC420 from Eastman is an impeccably crafted, all solid-wood, flat top guitar. Eastman acoustics are entirely handmade by skilled luthiers. This model features Indian Rosewood back and sides with a Sitka Spruce top. The sound is crisp and punchy with that classic dreadnought presence. The fact that Eastman can make this guitar at this price-point is utterly amazing. You won't find a better price on an all-solid-wood dread anywhere. Here at Sound Pure, we've been pretty blown away by the Eastman acoustic guitars ever since they came out. Comes standard with a hardshell case and limited lifetime warranty.

How to Record Grand Piano -- Earthworks PM40 PianoMic

Also in this recording Earthworks PM40 Piano Microphone System Lynx Aurora 16 I/O D/A and A/D Converter Bricasti Design M7 Reverb Processor Sebatron VMP 4000e 4 Channel Tube Mic Pre Earthworks 1024 Quad Mic Pre with Zero Distortion Technology

http://www.soundpure.com/p/earthworks...The Earthworks PM40 Piano Mic system is the easiest way to achieve a world class piano recording whether or not the piano lid is up or down. Whether you are recording a Yamaha C7,... Read more

http://www.soundpure.com/p/earthworks...The Earthworks PM40 Piano Mic system is the easiest way to achieve a world class piano recording whether or not the piano lid is up or down. Whether you are recording a Yamaha C7, or a Steinway Grand Piano, or any other grand piano, it will provide you the sound and tone of the instrument that you put in front of it with dazzling accuracy. It has incredible detail, and exhibits no proximity effect, even when positioned directly over the strings, regardless of the positioning of the lid. You can have outstanding isolation from other instruments with the lid down, even in live concert piano performance, but the Earthworks PianoMic system can also deliver audiophile quality piano recordings in studios, with the lid up. Because of the neutral and natural sound of these microphones they also take wonderfully well to any kind of preamp coloration, EQ, compression, or Reverb that you want to throw at it. Call us at Sound Pure to order yours today, or discuss how it works, 888-528-9703.

Evans RE200 Guitar Amplifier Demo

Also in this recording Lynx Aurora 16 I/O D/A and A/D Converter Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Peluso P-67 Switchable Pattern Tube Microphone Evans RE200 Guitar Amplifier Combo Buscarino Monarch Custom SP06105510 Benedetto Bravo Semi-Hollow One-Off Cherry Archtop Guitar

The RE200 from Evans Custom Amplifiers delivers rich jazz guitar tone in a light and portable package. The signature Evans sound has defined lows, warm, punchy midrange, and harmonically complex highs. The string separat... Read more

The RE200 from Evans Custom Amplifiers delivers rich jazz guitar tone in a light and portable package. The signature Evans sound has defined lows, warm, punchy midrange, and harmonically complex highs. The string separation is extraordinarily even for chord playing. The RE200 is known for it's versatility. Solid archtops, flat tops, and solid body electric guitars all sound amazing through this amp. At 200 Watts there is plenty of headroom for almost any application.

Evans Amplifiers RE200/JE200 -- Dialing in your amp's sound

Also in this recording Buscarino Monarch Custom SP06105510 Peluso P-67 Switchable Pattern Tube Microphone Evans RE200 Guitar Amplifier Combo Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter Evans JE200 Guitar Amplifier Combo

Evans Custom Amplifiers builds some of the best solid-state amps in the world. Their unique circuit features passive tone controls that enable precise sculpting of your sound. Evans amps work fantastically with archtop g... Read more

Evans Custom Amplifiers builds some of the best solid-state amps in the world. Their unique circuit features passive tone controls that enable precise sculpting of your sound. Evans amps work fantastically with archtop guitars, as featured in this video. This is a step-by-step explanation of how to adjust the amplifier to meet your specific needs. The result is a wonderful archtop tone from the Buscarino Monarch Custom. Everyone here at Sound Pure Studios is very impressed with what we can achieve with these amazing custom amplifiers.

Mojave MA200 Tube Mic Demo -- How to Record Acoustic Guitar

Also in this recording Mojave Audio MA-200 Tube LDC Microphone Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter Millennia HV-3R Digital 8 Channel Mic Preamp

The Mojave MA200 Tube microphones is a world class vacuum tube condenser microphone capable of producing extremely warm and musical tube tones, on all sorts of instruments and vocals. Here the Mojave Audio MA200 is used... Read more

The Mojave MA200 Tube microphones is a world class vacuum tube condenser microphone capable of producing extremely warm and musical tube tones, on all sorts of instruments and vocals. Here the Mojave Audio MA200 is used to produce outstanding results in an actual recording studio session, as well as in an untreated space, the Sound Pure Boutique Guitar Showroom. The entire Sound Pure staff was wowed by the sound of these incredible large diaphragm tube condenser microphones from Mojave Audio, designed by David Royer or Royer Ribbon Microphones. Sound Pure would be glad to discuss more about any of these fine microphones, so do call us toll free 888.528.9703, international 919.682.5552, or visit our website where you can learn more about these fantastic mics.

Earthworks QTC40 Microphones Acoustic Guitar Video

Also in this recording Earthworks QTC40 Time Coherent Omnidirectional Microphone Sebatron VMP 4000e 4 Channel Tube Mic Pre Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter McPherson 5.0XP Port Orford Cedar/Striped Macassar Ebony #1625 MJ Franks Legacy Dreadnought Brazilian Rosewood Acoustic Guitar

The Earthworks QTC40 Omni Microphones (formerly the QTC1) record Acoustic Guitars in a state-of-the-art recording studios. The matched pair of microphones, from Earthworks QTC (quite time coherent) microphones series of... Read more

The Earthworks QTC40 Omni Microphones (formerly the QTC1) record Acoustic Guitars in a state-of-the-art recording studios. The matched pair of microphones, from Earthworks QTC (quite time coherent) microphones series of omni-directional mics produce dazzling results on acoustic guitars do to their inherent low noise, amazing accuracy and detail, and true-omni pattern. Even when placed close to the instrument in a spaced A-B omni setup, the microphones remain true, and capture all of the harmonic detail and presence. They were used with the Earthworks 1024 zero distortion mic preamp as well as the Sebatron 4000e tube mic preamp. The entire Earthworks range of microphones is available from Sound Pure, an authorized Earthworks dealer, always available to answer any of your questions, or help with your next upgrade- call us toll free at 888.528.9703.

Martin HD-28 VS Acoustic Guitar Video Demo in Recording Studio (Spruce/Rosewood)

Also in this recording Martin HD-28VS Acoustic Guitar - Near Mint Telefunken Elektroakustik AR-51 Microphone Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter

This is a very well cared for HD-28VS from 2007, recorded beautifully with a pair of the new Telefunken AR51s through an Earthworks 1024 Mic preamp at Sound Pure Recording Studios. This 12-fret Dread from Martin is known... Read more

This is a very well cared for HD-28VS from 2007, recorded beautifully with a pair of the new Telefunken AR51s through an Earthworks 1024 Mic preamp at Sound Pure Recording Studios. This 12-fret Dread from Martin is known as the "banjo killer" due to its gigantic sound. Its got s solid spruce top with Solid Indian Rosewood Backs and Sides. The setup is really good with nice medium to low action. No buzzes anywhere. There are no scratches, dings, or repairs to speak of. A great way to get into one of these guitars at a discount! All the gear in the video is available for purchase from Sound Pure, call and speak to one of our recording-gear experts, or guitar-professionals today, toll free at 888-528-9703

Recorded with this gear

From Earthworks

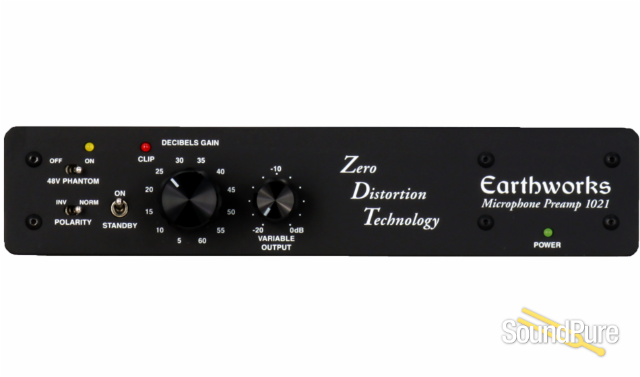

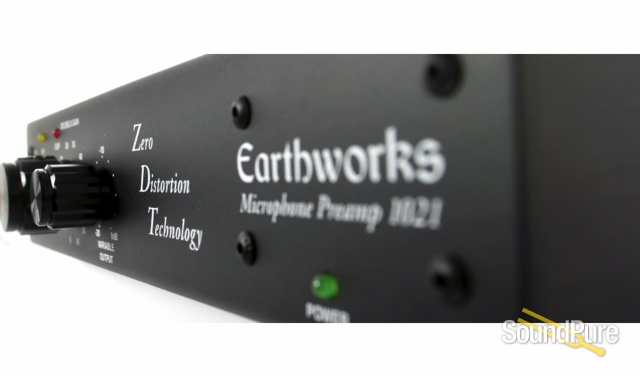

The ZDT preamplifier series is based on discrete circuitry designed by David Blackmer, establishing a new standard of sonic excellence in electronics. This exacting new standard provides frequency response from 1Hz to 200kHz +0.5dB, a rise time of 0.27 microseconds and distortion of less than 1 part per million (0.0001%), eliminating all possibility of sonic degradation. These preamps are so fast, so clean and so transparent that you don’t even know they are there. It is like plugging your microphone into a “piece of wire with gain”. You will hear clarity and detail with the ZDT preamps that is not available in any other preamp at any price.

·         Zero Distortion – less than one part per million

·         High output level +33dBu

·         Very Low Output Impedance will drive long lines without interference or signal loss

·         True 48 volt phantom, polarity reverse & clip indicator

·         Separate XLR & 1/4” Phone (t-r-s) outputs, each with its own gain/level controls

·         1/4” Phone connector output will drive balanced or unbalanced inputs

·         Lowest Noise of any preamp on the market

·         Full Differential (balanced) from XLR in to XLR out – no internal conversion to single-ended

·         All Discrete Components; Class A Amplification (No ICs in the signal path)

·         Greater Transparency with minimum signal path and minimum features

Preamp Type
Solid State
Number of Channels
1
Frequency Response
2Hz to 100kHz ±0.1dB, 1Hz to 200kHz ±0.5dB
Impulse Response
1.4µs
Distortion
XLR out: less than 1ppm (0.0001%); 1/4” out: 0.001%
Input Noise
1.6nVHz½ at 20dB gain; 0.6nV/Hz½ at 60dB gain
EIN
-132dBV at 20dB gain; -143dBV at 60dB gain
Slew Rate
22V/µs
Output DC Offset
±1 mV typical, servo balanced
Power Requirement
120V AC (100V and 200-240V versions available)

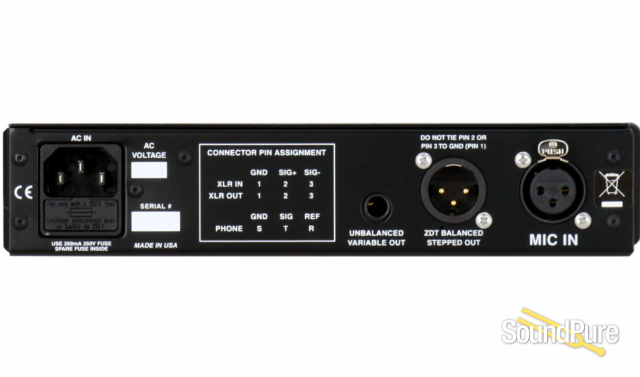

Input
1 XLR Female balanced transformerless
Input Impedance
10KΩ phantom on, 100KΩ phantom off
Outputs
1 XLR Male balanced transformerless (stepped)

1 ¼” TRS XLR Fem. balanced transformerless (variable)

Dimensions
Half rack space 1.75” x 8.75” x 10.375”
Weight
4 lb. (1.8kg)
