From AEA

In the past few years AEA's acclaimed R84 Ribbon Microphone has become a new studio standard. Now AEA has once again expanded the sonic possibilities of ribbon mics with the R92 Ribbon Microphone. Reduced proximity bass boost and excellent wind blast protection make it suitable for close micing (6-12 inches) of guitar amps, vocals, percussion, etc. In addition, the smooth high frequency response of the R88 transducer has been further extended in the R92, making the R92 a unique voice in the world of ribbon mics.

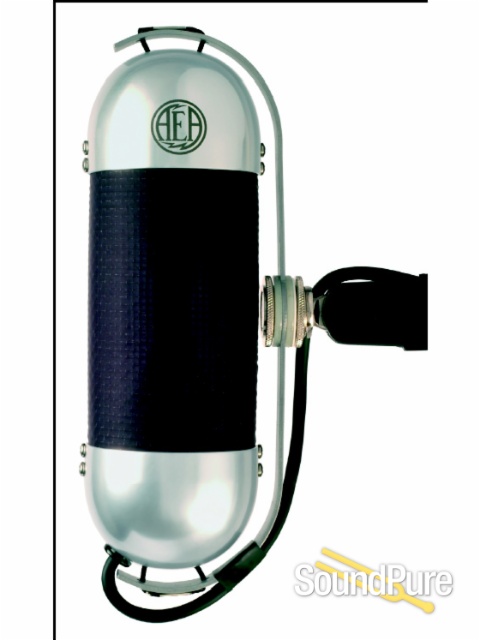

AEA has designed the R92 to have slightly different tones on the front and rear pickup lobes of the microphone. The front lobe of the R92 is the "crisp" side, offering exceptionally clean and realistic high end detail. The rear lobe is the "smooth" side, which has a bit of classic ribbon high end rolloff that can help to handle harsh transients in a very refined and flattering way. Just like its bigger brothers in AEA's LRGTM microphone series, the bass reproduction of the R92 is very solid and extended to the lowest audible bass frequencies.

The R92 is designed with an integral elastic shock mount, featuring a unique mounting system that allows excellent flexibility of mic positioning. The mic ships with a two meter cable and a durable plastic carrying case.

AEA's Matt Ashman comments about the R92: 'We designed it to have a very full range sound, and to capture it all with a minimum of resonance artifacts for the ultimate in realism. It's perfect for getting FAT guitar sounds with a present and clean high end."

Specifications

Polar Pattern
Native bidirectional (figure-eight)
Frequency Response
20 Hz to 18 kHz (+/- 3 dB)
Maximum SPL
>135 dB SPL (C-weighted fast)
Output Sensitivity
> -55 dBv/Pa
Output Impedance
270 ohms nominal
Recommended Load
1.2 K ohm or greater
Powering
Not required or recommended
Polarity
Pin 2 high
Connector
XLR-3M wired to a 2 meter captive cable

Includes durable plastic case with foam interior

Operating manual for proper care and usage.

Transducer element

Ribbon Thickness
1.8 microns ( .0000018 meter ) of pure aluminum
Ribbon Width
4.7 mm
Ribbon Length
59.7 mm
Limited Warranty
One year parts and labor, shipping not included.

Free 3-Year Warranty

Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.

Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →

Returns

Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.

Sound Pure Studios Control Room A — Durham, NC

Sound Pure Studios · Durham, NC

Come hear it in our control rooms.

Sound Pure is a working studio in Durham, NC — a 1,000 sq ft live room and two pro control rooms. Book a session to audition gear in a world-class acoustic space before you buy.

$1,199
