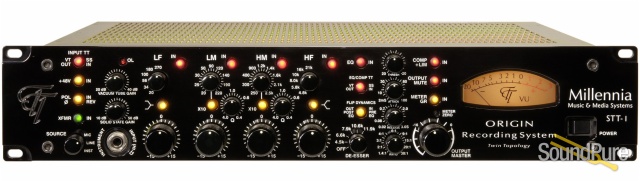

Millennia Origin STT-1 Channel Strip

Name: Millennia Origin STT-1 Channel Strip
Brand: Millennia Media
SKU: 258
Price: 4050.00 USD
Availability: BackOrder

Twin Topology Class A recording Channel

Choose a version

Millennia Origin STT-1 Channel Strip Current

Browse 8 other versions

Millennia HV-3C Stereo Preamp View Millennia HV-3D 4 Channel Mic Preamp View Millennia HV-3D 8 Channel Mic Preamp View Millennia HV-3R Digital 8 Channel Mic Preamp View Millennia M-2B Stereo Tube Preamp View Millennia NSEQ-2 Stereo EQ View Millennia TCL-2 Stereo Compressor View Millennia TD-1 Pre EQ DI View

Retail: ~~$4,500.00~~ $4,050.00 or about $169/mo with Affirm Prequalify →

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Free 3-Year Parts & Labor Warranty (details)
Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

Sound Pure's Take

The most versatile channel strip that money can buy! The Origin is one of the few Channel Strips that has a Preamp, Compressor and EQ that all not only work together, but are pulled from components that you would own independently.

With the three main parts of the strip being incredibly versatile, Millennia turned up the versatility even further with their Twin Topology circuit. Twin Topology allows you to choose Tube or Solid state at EACH part of your chain! Simply put, this gives you an infinite amount of settings in your mixes, during tracking, or even for the mastering chain. As an example, you can run the super clean and detailed preamps of the Origin with the Solid State circuit engaged, but then use the Comp with the tube circuit and the EQ with either the Tube or Solid State circuit. Each portion is independent, and there simply isn’t another channel strip on the market that can do what these can do. If you haven’t seen our videos yet, going into detail what each section is capable of, you really need to (seriously, watch now, we’ll wait :).

Watch & listen

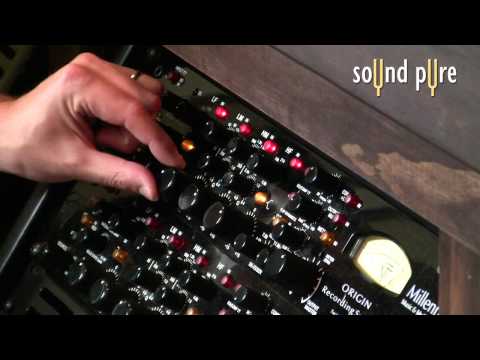

Millennia's STT-1 Origin Channel Strip Overiew Demonstration

Millennia Media's STT-1 Origin contains their clean/transparent preamp, a four band parametric EQ, Compressor, De-esser, and both vacuum tube and solid state signal path options. It is also possible to link a pair of STT-1s in order to use them as a mix bus/stereo pair - great for mastering. This video provides an overview of the Origin, and covers all of the features. This is also the last video in our Millennia Media video series. Check out all of our other videos featuring Millennia's products.

Mastering with a Pair of Millennia STT-1 Origin Channel Strips - Demo Video

The Millennia STT-1 Origin channel strip from Millennia Media is an all-in-one recording channel. It offers Class-A vacuum tube circuitry, Class A, discrete, J-FET solid state topology, as well as a colorful choice of transformer-coupled or transformerless audio paths. The Origin utilizes Millennia's fantastic NSEQ, TCL compressor, DI, HV-3 solid state mic pre, and de-esser. A pair of STT-1s can be linked in order to use them as a mix bus/stereo pair - perfect for mastering. In this video we use a pair of STT-1s to master an indie rock song by Peter Bergquist, a simple, four mic drum track, and a big band tune written by Tony Mazzella and performed by the UNC Jazz Band here at Sound Pure Studios. Listen to the differences between the before and after settings. If you are interested in the Millennia STT-1 Origin or any other recording gear, please don't hesitate to call or email us hear at Sound Pure.

Millennia NSEQ-2 STT-1 EQ Demo Video - Part 1

Also in this recording Millennia NSEQ-2 Stereo EQ Lynx Aurora 16 I/O D/A and A/D Converter Neumann TLM 102 MT Microphone Millennia HV-3R Digital 8 Channel Mic Preamp CharterOak SA538B Tube Microphone

The Millennia NSEQ2 shares the same sensation EQ as the STT1 Origin Mic Preamp channel strip. In this demonstration we take you through the tube and transformer coloration capabilities, as we engage and disengage these on a Jazz Grand Piano recording. We then demonstrate the capability of the EQ in a surgical fashion, by taking out some offending frequencies in a Baritone Sax. Give us a call to discuss either of these powerful products from Millennia media that we rely on in our professional work here at Sound Pure Studios. Call us anytime, anywhere in the world at 919.682.5552.

Tour of Types Vocal Mic Shootout: Shure SM7B vs AEA R44 CXE vs Manley Ref C vs Neumann U87Ai

Also in this recording Shure SM7B Large Diaphragm Dynamic Microphone AEA R44 CXE High Output Ribbon Microphone Manley Reference Cardioid Microphone Neumann U87Ai Microphone Millennia HV-3R Digital 8 Channel Mic Preamp

In this video, we put four different types of microphones up against each other on female vocals: the Shure SM7B (Dynamic Mic), the AEA R44 CXE (Ribbon Mic), the Manley Ref C (LDC Tube Mic), and the Neumann U87Ai (Solid State LDC Mic). Joining us for this shootout are Ayisa Adderley (vocals) and Caige Crampshee (guitar) from the band Eyes Eat Suns. Check them out at WWW.EYESEATSUNS.BAND.

87-Style Female Vocal Mic Shootout: Neumann U87Ai vs Warm Audio WA87 vs Peluso P87, Quick n' Dirty

Also in this recording Neumann U87Ai Microphone Neumann U87Ai Set Z Microphone Peluso P87 Multi-Pattern Solid State Microphone Warm Audio WA-87 Condenser Microphone Millennia HV-3R Digital 8 Channel Mic Preamp

In this video we present an 87-style microphone shootout on female vocals using the Warm Audio WA87, the Neumann U87Ai, and the Peluso P87. Can you tell which one's which? If you are interested in hearing the results and... Read more

Neumann TLM 170R MT Microphone Quick n' Dirty

Also in this recording Neumann TLM 170R MT Microphone Millennia HV-3R Digital 8 Channel Mic Preamp

In this video, Sound Pure pro audio specialist Travis Hall talks us through the Neumann TLM 170R MT Microphone, and plays some demo clips of this mic in action on male vocals.

87-Style Mic Shootout: Warm Audio WA87 vs Neumann U87Ai vs Peluso P87

Also in this recording Warm Audio WA-87 Condenser Microphone Peluso P87 Multi-Pattern Solid State Microphone Neumann U87Ai Microphone Millennia HV-3R Digital 8 Channel Mic Preamp

In this video we present an 87-style microphone shootout on acoustic guitar and vocals using the Warm Audio WA87, the Neumann U87Ai, and the Peluso P87. Can you tell which one's which? If you are interested in hearing the results and/or getting ahold of the audio files from this shootout, give us a shout, we'd love to hear from you!

251 Style Vocal Mic Shootout: Telefunken 251E v. Bock 251 v. Upton 251 v. Neumann M149

Also in this recording TELEFUNKEN Elektroakustik ELA M 251E Microphone Bock Audio 251 Tube Condenser Microphone Upton Microphones 251 Multi-Pattern LDC Tube Microphone Millennia HV-3R Digital 8 Channel Mic Preamp Serpent Audio Chimera 500-Series Opto Compressor Bricasti Design M7 Reverb Processor SoundToys EchoBoy - Delay Plug-in

In this video we present a 251 style vocal microphone shootout using the Telefunken 251E, the Bock 251, the Upton 251, and the Neumann M149. Can you tell which one's which? If you are interested in hearing the results an... Read more

LDC Kick Drum Mic Shootout: Neumann U47 FET vs Bock iFET vs Soyuz SU-019

Also in this recording Neumann U 47 FET Collectors Edition Bock Audio iFET Condenser Microphone Soyuz 017 FET Large Diaphragm Condenser Millennia HV-3R Digital 8 Channel Mic Preamp Shure Beta 181/C Ultra-Compact Side-Address Microphone AEA R88 MKII Stereo Ribbon Microphone Dunnett Classic 8x14 Magnesium Snare Drum Shure Beta 52A Kick Drum Microphone

In this video we present an LDC kick drum microphone shootout using the Neumann U47 FET, the Bock iFET and the Soyuz SU-019. Can you tell which one's which? If you are interested in hearing the results and/or getting aho... Read more

Millennia TCL-2 STT-1 Compression Demo Video

Also in this recording Millennia TCL-2 Stereo Compressor

Millennia's TCL-2, Twincom compressor is the same compressor in the STT-1 Origin Mic Pre. The clean and transparent Twincom compressor can be used for recordings of any genre. In this demo, we show its use on saxophone, double bass, and female vocals. The compressor can be used on individual mono channels or linked for stereo channels. The compressor is fast enough and includes a 30:1 ratio option in order to use it as a limiter as well. The TCL-2 and the STT-1 both feature two paths, a J-FET solid state signal path and an all triode 300 V vacuum tube signal path, using Millennia's patented Twin Topology. If you have any questions about this fantastic compressor or any other pro audio equipment, don't hesitate to call us today at Sound Pure. 919.682.5552

Millennia NSEQ-2 STT-1 EQ Demo Video - Part 3

Also in this recording Millennia NSEQ-2 Stereo EQ

Millennia's NSEQ2, the same EQ in the STT-1 Origin Mic Pre, is a very clean EQ that can be used in recordings of all genres. Previously, we explored the four band parametric EQ on Steinway grand piano and saxophone. In this video, we demonstrate how the EQ can give us a variety of colors on electric guitar in this rough mix of Scott Sawyer (http://www.scottsawyer.net/) and members of The Old Ceremony (http://www.theoldceremony.com/). Using the EQ, we can find the sound we want to fit the electric guitar into the mix. To find out more about this fantastic EQ, give us a call here at Sound Pure anywhere, anytime 919.682.5552. Or email us at sales@soundpure.com

Millennia NSEQ-2 STT-1 EQ Demo Video - Part 2

Also in this recording Millennia NSEQ-2 Stereo EQ Neumann TLM 102 NI Microphone Lynx Aurora 16 I/O D/A and A/D Converter

The Millennia NSEQ2 is an amazing EQ, the same this on the STT-1 Origin Mic Preamp. This four band parametric EQ is very versatile and transparent and can be used in many situations. In this video, we sweep through the EQ on a jazz piano recording to demonstrate how clean it is before brightening up the Steinway Grand Piano . If you are interested in the Millennia NSEQ-2 or the STT-1, please let us know. We would be happy to give you more information on this excellent EQ. Call us anytime, anywhere in the world at 919.682.5552.

Recorded with this gear

Clean Electric Tremolo Guitar into Peluso P-67

Also in this recording Victoria Amps Victorilux 45W 2x12 Combo Amp Peluso P-67 Switchable Pattern Tube Microphone Millennia TD-1 Pre EQ DI

The Tyler Studio Elite HD Copper Patina Schmear recorded through the Victorilux Amp by Victoria and into the Peluso P-67 switchable pattern tube microphone and into the Millenia TD-1 DI/Preamp. Recorded live at Sound Pur... Read more

volume cleanup electric guitar bridge pickup

Also in this recording Bad Cat Lynx Amplifier Head Bad Cat 4x12 Speaker Cabinet Blk Os Peluso 2247 LE Switchable Pattern Tube Microphone Chameleon Labs 7602 MKII Mic Pre / EQ AEA R84 Ribbon Microphone A Designs Pacifica Stereo Preamp Heil PR-40 Microphone Millennia TD-1 Pre EQ DI

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 1, volume knob cleanup, gain 3pmm edge 3pm, tone 9am, ,mid 12pm, treble 12pm, mid boost open, presence 12pm, bass 12pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

walking up & down electric guitar neck pickup

Tyler Ultimate Weapon electric guitar(neck pickup) played into Bad Cat Lynx Head(channel 1, volume 9am, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 12pm, mid boost open, presence 12pm, bass 2pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

walking loud electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(neck pickup) played into Bad Cat Lynx Head(channel 1, volume pm, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 12pm, mid boost open, presence 12pm, bass 2pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

speed demon electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 1, volume open, gain 3pmm edge 3pm, tone 9am, ,mid 12pm, treble 12pm, mid boost open, presence 12pm, bass 12pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

scream demon electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 1, volume knob cleanup, gain 3pmm edge 3pm, tone 9am, ,mid 12pm, treble 3pm, mid boost open, presence 3pm, bass 12pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

walking electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 1, volume 12am, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 3pm, mid boost off, presence 3pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

speeding demon electric guitar bridge pickup

cranky loud electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 2, volume 12am, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 3pm, mid boost off, presence 3pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

speed demon electric guitar neck pickup

Tyler Ultimate Weapon electric guitar(neck pickup) played into Bad Cat Lynx Head(channel 1, volume knob cleanup, gain 3pmm edge 3pm, tone 9am, ,mid 12pm, treble 3pm, mid boost open, presence 3pm, bass 12pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

walking up & down electric guitar bridge pickup

Tyler Ultimate Weapon electric guitar(bridge pickup) played into Bad Cat Lynx Head(channel 1, volume 9am, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 12pm, mid boost open, presence 12pm, bass 2pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

cranky loud electric guitar neck pickup

Tyler Ultimate Weapon electric guitar(neck pickup) played into Bad Cat Lynx Head(channel 1, volume 12am, gain 11am edge 3pm, tone 9am, ,mid 12pm, treble 3pm, mid boost off, presence 3pm) into Bad Cat 4x12 Cabinet mic'd with Peluso 2247 LE(6 feet off, panned 30% right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned center) into A Designs Pacifica preamp & Heil PR-40(close, panned 30% left) into Millennia TD-1 feeding Apogee Rosetta 800.

clean Arpeggiated electric guitar neck pickup

Also in this recording Bad Cat Black Cat Guitar Amplifier Head Bad Cat 4x12 Speaker Cabinet Blk Os Heil PR-40 Microphone Millennia TD-1 Pre EQ DI Peluso R14 Ribbon Microphone Chameleon Labs 7602 MKII Mic Pre / EQ AEA R84 Ribbon Microphone A Designs Pacifica Stereo Preamp

James Tyler Studio Elite Retro electric guitar (neck pickup clean) played into Bad Cat Black Cat Head(triode channel, Volume 9am, Treble 12 oclock, Bass 12 oclock) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

blues licking guitar neck pickup

James Tyler Studio Elite Retro electric guitar (neck pickup) played into Bad Cat Black Cat Head(triode channel, Volume 3pm, Treble 12 oclock, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

ladyland electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(triode channel, Volume max, Treble 2pm, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

loud with an A electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(pentode channel, Volume 3pm, tone position 5, cut 9 am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

scaley electric guitar neck & bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(triode channel, Volume noon, Treble 12 oclock, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

loud & crunchy electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(pentode channel, Volume open, tone position 4, cut open) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

hot n' loud electric guitar neck pickup

James Tyler Studio Elite Retro electric guitar (neck pickup) played into Bad Cat Black Cat Head(triode channel, Volume max, Treble 2pm, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

loud and swell electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(pentode channel, Volume 3pm, tone position 5, cut 12 0'clock) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

swelling electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(pentode channel, Volume 11am, tone position 1, cut 12 o'clock) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

bright bluesy electric guitar neck pickup

hot n' short electric guitar bridge pickup

loud Arpeggiated electric guitar neck pickup

hot n' fast electric guitar neck & bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge/middle pickup) played into Bad Cat Black Cat Head(triode channel, Volume 3pm, Treble 12 oclock, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

hot leading electric guitar bridge pickup

James Tyler Studio Elite Retro electric guitar (bridge pickup) played into Bad Cat Black Cat Head(triode channel, Volume 3pm, Treble 12 oclock, Bass 10am) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

country with a g electric guitar neck pickup

James Tyler Studio Elite Retro electric guitar (neck pickup) played into Bad Cat Black Cat Head(pentode channel, Volume 9am, tone position 1, cut 12 o'clock) into Bad Cat 4x12 Cabinet mic'd with Heil PR-40(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(6 feet off, panned left) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 foot off, panned right) into A Designs Pacifica preamp feeding Apogee Rosetta 800.

arpeggiated booster electric guitar bridge pickup

Also in this recording Sennheiser MD 421 II Cardioid Dynamic Microphone Millennia TD-1 Pre EQ DI Peluso 2247 LE Switchable Pattern Tube Microphone Chameleon Labs 7602 MKII Mic Pre / EQ AEA R84 Ribbon Microphone A Designs Pacifica Stereo Preamp

McNaught Vintage Single Cut electric guitar (neck pickup, boost gain to noon) played into Bad Cat Alley Cat Combo mic'd with Sennheiser MD 421 II(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(5 feet off, panned right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 feet off, panned left) into A Designs Pacifica Preamp feeding Apogee Rosetta 800.

gaining electric guitar bridge pickup

McNaught Vintage Single Cut electric guitar (bridge pickup, gain 10) played into Bad Cat Alley Cat Combo mic'd with Sennheiser MD 421 II(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(5 feet off, panned right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 feet off, panned left) into A Designs Pacifica Preamp feeding Apogee Rosetta 800.

rev gaining electric guitar bridge pickup

McNaught Vintage Single Cut electric guitar (bridge pickup, clean to boosted gain at 3pm) played into Bad Cat Alley Cat Combo mic'd with Sennheiser MD 421 II(close, panned center) into Millennia TD-1 preamp & Peluso 2247 LE(5 feet off, panned right) into Chameleon Labs 7602 MKII Preamp & AEA R84(1 feet off, panned left) into A Designs Pacifica Preamp feeding Apogee Rosetta 800.

From Millennia Media

Over 130 Optimized Signal Topologies

· Twin Mic Preamps — M-2B vacuum tube or HV-3 discrete solid state

· Twin NSEQ-2 Mastering-Grade Parametric Eqs — vacuum tube or discrete solid state

· Three Opto Compressor/Limiter Paths — TCL vacuum tube, discrete solid state, passive

· Twin Opto De-Esser Paths — vacuum tube or discrete solid state

· Vacuum tube or discrete solid state line level paths

· Input coupling with or without MIT-01 audio transformer

· 1/4” vacuum tube DI input — route via tube or solid state gain path

· Effortless, lifelike musical performance at all levels

· Musically rich vacuum tubes available

· Gold audio connectors, tube sockets, relays and switches

· 3/8“ thick radius extruded aluminum face plate

· Durable black mirror-gloss anodized finish

· Mil spec 16 gauge cold-rolled steel chassis

· Ultra-clean toroid power supply: internal sub-chassis

· Hand machined aluminum knobs, illuminated IT&T pushbuttons

· Mogami Neglex OFC audio wiring

· Silver Teflon power wiring

· True audio VU meter for output level or dynamics gain reduction

Options

· Musically rich vacuum tubes

Microphone Preamplifiers & General
Twin Topology Mic Preamplifier Selection	Switchable, Vacuum Tubes or Solid-State
Twin Topology EQ & Compressor	Switchable, Vacuum Tubes or Solid-State
Twin Topology Input Coupling	Switchable, Transformer or Transformerless
Maximum Output Level (Balanced)	+ 32 dBu
Frequency Response
+0 / -3 dB (S/S)	sub 5 Hz to beyond 300 kHz
Equivalent Input Noise	-131 dBu (SS, Common Source, Direct Out)
THD + Noise
20 Hz - 22 kHz (S/S)	< .05 %, typ < .003 %
Common Mode Rejection Ratio (S/S)	> 40 dB, Typ > 70 dB @ 60 Hz.
Input Impedance (Mic)	6,200 ohms
Input Impedance (Line)	2,200 ohms (x2)
Input Impedance (Di - Instrument)	> 1 megohm
Output Impedance (Balanced)	24.3 ohms (x2)
Parametric Equalizer
Maximum EQ Boost/Cut Range (21 Step Detented)	+/- 15 dB
EQ Frequencies
Low Range Switch (Centers - Peak/Shelf Selectable):	20, 34, 56, 100, 180, 270
Low Mid Sweep:	20 Hz - 220 Hz or 200 Hz - 2.2 kHz. 10X Range switch selectable.
Hi Mid Sweep:	250 Hz - 2.5 kHz or 2.5 kHz - 25 kHz. 10X Range switch selectable.
High Range Switch (Centers - Peak/Shelf Selectable)	4.8 k, 5.8 k, 8.0 k, 10 k, 16 k, 21 k
“Q” Range	Q = 0.4 to 4.0 Adjustable on middle ranges
	Q = 1.0 Fixed on low & high ranges
Optoelectronic Compressor/Limiter
Threshold Range	Infinite to +20 dBu
Attack Range	2 ms to 100 ms
Release Range	80 ms to 3.0 s
Compression Ratio Range	minimum 1.4 : 1, maximum 30 : 1
De-Essing Frequency Switch	OFF, 4.9 k, 6.8 k, 8.2 k, 10.7 k , 12.0 k
Power Consumption	50 watts maximum
Power Requirements	Selectable: 100-120, 200-240 V ac, 50/60 Hz
Dimensions/Shipping Weight	19” W x 3.5” H x 15.5” D, 25 lbs.
